Unmanaged 10/100/1000M Industrial Ethernet POE Switch High Power 4G + 2SFP

Unmanaged 10/100/1000M Industrial Ethernet POE Switch High Power 4G + 2SFP
Unmanaged 10/100/1000M Industrial Ethernet POE Switch High Power 4G + 2SFP

Hình ảnh lớn :  Unmanaged 10/100/1000M Industrial Ethernet POE Switch High Power 4G + 2SFP

Thông tin chi tiết sản phẩm:
Nguồn gốc: Guangdong
Hàng hiệu: E-link
Chứng nhận: CE/FCC/Rohs
Số mô hình: LNK-GYH204GP-SFP Series
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 pcs
Giá bán: USD175-200/pcs
chi tiết đóng gói: 1 pcs in 1 carton box
Thời gian giao hàng: 5-8 days
Điều khoản thanh toán: T/T, L/C, Western Union, MoneyGram
Khả năng cung cấp: 10000pcs/Month
Tiếp xúc
Chi tiết sản phẩm
MAC Table Size: 8K Packet Buffer Size: 1Mbit
Processing Type: Store and Forward Exchange Properties: 1,488,000pps (1000M)
Optical Interface: SFP slot Product Size: W×D×H: 128x105x47mm
Điểm nổi bật:

industrial grade ethernet switch

,

industrial gigabit ethernet switch

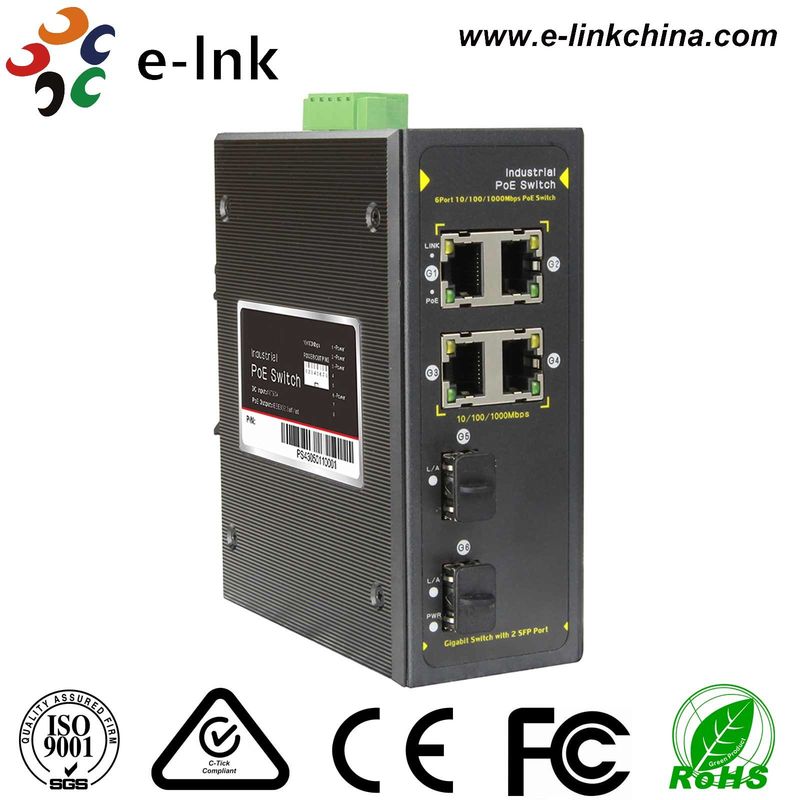

Unmanaged 10/100/1000M Industrial High Power PoE Switch 4G + 2SFP

Model: LNK-GYH204GP-SFP Series

Overview



LNK-GYH204GP-SFP is industrial High Power PoE switch, with 2 10/100/1000M High Power PoE ports, 2 10/100/1000M RJ45 ports and 2 gigabit SFP slots, for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, VoIP, wireless AP and other PoE supported devices. It could supply power to dome camera, which needing high power. Optical fiber SFP interface extends network transmission distance limit from 100m to above 20KM (Multi-mode 550mters, single-mode 20KM), it simply connects remote multiple motherboard servers, relays, hubs, terminals and multiple terminals.

The product components were rigorous screened, have superior performance in stability, environmental adaptability. Shells were made by aluminum extrusion, more lighter, stronger, better resistance ability to corrosion and electromagnetic interference, ensure stability and security of Industrial Ethernet Switch, plus standard DIN-35 rail type installation method. Power input also chooses a suitable industry-standard types of power, to get more powerful suitability to environment.



Features

  • 2*10/100/1000M PoE ports + 2*10/100/1000M RJ45 ports + 2*SFP Optical Ports.
  • Port 1-2 support PoE. Single PoE Port Power Output: 60W. Total power is 130W.
  • Power ports supports both IEEE802.3af and IEEE802.3at standard PoE power supply
  • Supports IEEE802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode
  • RJ-45 port supports Auto MDI/MDI-X
  • Automatic MAC address learning and aging
  • Auto-Negotiation for Full-duplex Mode and Half-duplex Mode
  • LED indicators for monitoring power/link/activity and Full-duplex or Half-duplex Mode
  • Electromagnetic compatibility of up to 4 grade standard
  • IP40 protection class
  • Superior performance, successfully used in industrial field
  • Default PoE power supply type is end-span, mid-span optional.



Application



Unmanaged 10/100/1000M Industrial Ethernet POE Switch High Power 4G + 2SFP 0





Technical Indexes



Parameter Specifications
Interface

MAC Table Size: 8K

Packet Buffer Size: 1Mbit

Processing Type: Store and Forward

Exchange Properties: 1,488,000pps (1000M)
PoE Specification

PoE Standard: Supports both IEEE802.3af and IEEE802.3at

Single PoE Port Power Output: 60W, Total power: 130W.

Port G1-G2:High Power PoE Port,Port G3-G4:RJ45 Port

2 PoE port auto detect af/at devices

PoE Port Output Voltage: DC48-57V

Power Pin Assignment:1/2+;3/6-
Forwarding Mode Store-and-forward
Optical Interface SFP slot
Optical Transmission Distance 550m-20km, or more, depends on optical module you used
Performance Specification Bandwidth: 12Gbps
Buffer:1M
Packet forwarding:8.93Mbps
Mac Address Table: 8K
MTBF: 539608 hours
Standards Compliance

IEEE802.3: CSMA/CD

IEEE802.3i: 10Base-T

IEEE802.3u: 100Base-T

IEEE802.3ab: 1000Base-T

IEEE802.3z: 1000Base-LX
LED Indicators Power: PWR; Link; PoE;L/A
Power Removable industrial 3-pin terminal block (Power adapter is not included in the package,need to order it separately)
Product Size W×D×H: 128x105x47mm
Working Environment

Working Temperature: -40～80℃
Storage Temperature: -40～75℃

Working Humidity: 5%～95%(non-condensing)
Storage Humidity: 5%～95%(non-condensing)
Working high: Altitude of 3000 m(10,000ft)
Storage high: Altitude of 3000 m(10,000ft)
Radiation CE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B
Approvals

Safety:

UL 60950-1

EMI:

FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:

EN61000-4-2 (ESD) , Level 3

EN61000-4-3 (RS) , Level 3

EN61000-4-4 (EFT) , Level 3

EN61000-4-5 (Surge), Level 3

EN61000-4-6 (CS) , Level 3

EN61000-4-8, Level 3

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

Industry: IEC61000-6-2

Rail: EN50155, EN50121-4

Traffic: NEMA TS-2
Safety CE Mark, commercial
CE/LVD EN60950
Warranty 5-year




Ordering Information



Model Description
LNK-GYH204GP-SFP Unmanaged 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T Console + 2-Port 1000X SFP Switch, Port 1-2 support PoE. Single PoE Port Power Output: 60W
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options ►120W/3A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.
