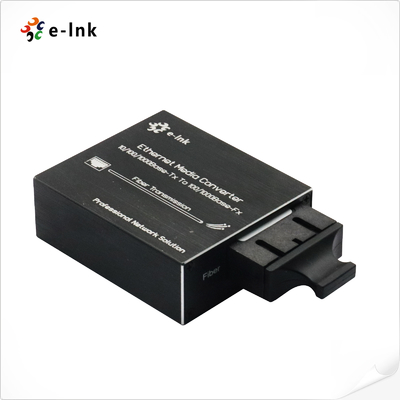

Micro Type SC DC15V 20km 3w 10/100/1000Mbps Fiber Ethernet Media Converter

Hình ảnh lớn : Micro Type SC DC15V 20km 3w 10/100/1000Mbps Fiber Ethernet Media Converter

Thông tin chi tiết sản phẩm:

Place of Origin:	Guangdong
Hàng hiệu:	E-link
Chứng nhận:	CE FCC RoHS
Model Number:	LNK-M3011 series

Thanh toán:

Minimum Order Quantity:	1 pc
Giá bán:	Please contact seller
Packaging Details:	Fiber Ethernet Media Converter Standard export package
Delivery Time:	5-10 working days
Payment Terms:	Western Union, MoneyGram, T/T
Supply Ability:	10000 per mouth

Tiếp xúc

Chi tiết sản phẩm

Product name:	Ethernet Media Converter	Power supply:	DC 5~15V
Working Temperature:	0~45ºC	Dimension:	62 x 44 x 18 mm
Wavelength:	1310/1550nm	Warranty:	3 Years

Microtype 10/100/1000Base-Tx to 100/1000Base-Fx Ethernet Media Converter

Overview

The LNK-M3011 series adaptive 10/100/1000Mbps Gigabit Ethernet media converters utilize switching

technology for seamless copper-to-fiber media conversion. Compliant with IEEE 802.3, 802.3u, 802.3z,

and 802.3ab standards, they bridge the gap between:

Copper (RJ-45): 10Base-T, 100Base-TX, and 1000Base-T electrical signals over twisted pair.
Fiber (SFP): 100Base-SX/LX and 1000Base-SX/LX optical signals.

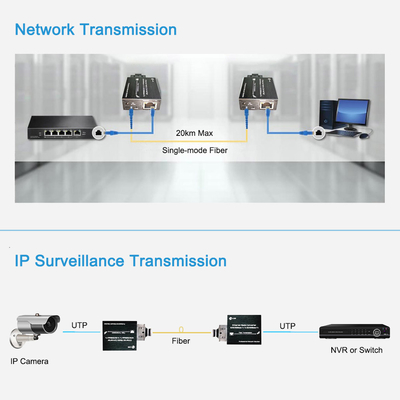

This conversion significantly extends network reach, overcoming the 100-meter limitation of copper

cabling to support distances up to 20km (and up to 120km maximum, depending on fiber type and

optics). The converters are versatile, supporting operation over:

Multi-mode dual fiber
Single-mode dual fiber
Single-mode single fiber

Key Features & Benefits:

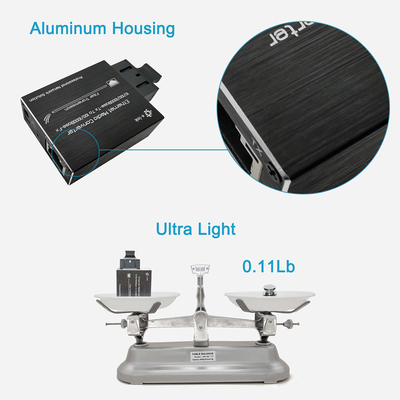

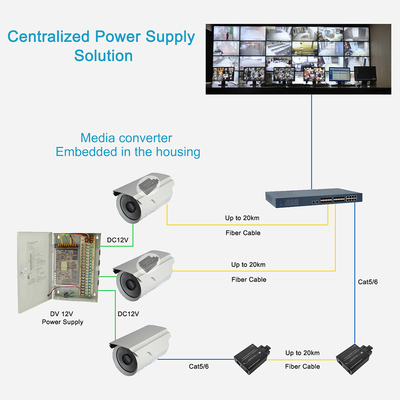

Compact & Integrated Design: The ultra-compact size facilitates easy installation and seamless

integration into other equipment or space-constrained environments.

Dual-Speed Fiber Compatibility:** Supports both 100Mbps and 1000Mbps operation on the fiber port,

ensuring broad compatibility with diverse network devices.

Extended Reach: Transforms short-range copper links (100m) into long-haul fiber connections (up

to 120km).

Features

► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SC Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► Microtype design

► Supporting full-duplex and half-duplex and its auto-sensed

► Support 9k jumbo frame

► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation

► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Fiber Port	1 SC Fiber Port, 100Base-FX or 1000Base-X dual mode (auto detection)
Wavelength	850nm/1310nm/1550nm
Transmission distance	multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm) Single mode Dual-fiber: SC (9/125μm) Single mode Single fiber: SC (9/125μm)
Conversion means	Media conversion
LFP	Not Support
BER	<10^-9
MTBF	100,000 hours

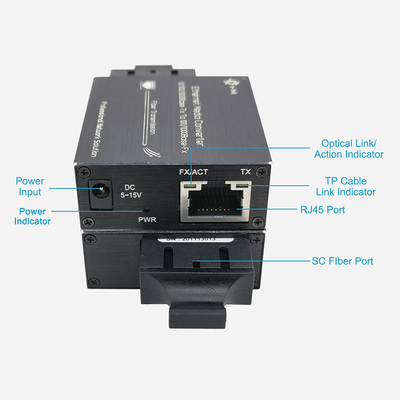

LED indicator	PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action)
Power supply	DC 5~15V
Power consumption	3W
Operating temperature	0~45ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

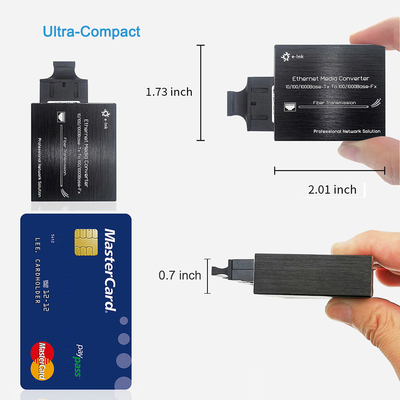

Dimensions (W x D x H)	62 x 44 x 18 mm

Ordering Information

Item	Description
Item	Description
LNK-M3011	Microtype Media Converter: 10/100/1000Base-T to 100/1000Base-F, mutli-mode, 500m, 850nm, SC, standalone, external power adaptor
LNK-M3011-20	Microtype Media Converter: 10/100/1000Base-T to 100/1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor
LNK-M3011S-20	Microtype Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor
