Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Keywords: | Gigabit PoE Ethernet switch | PoE Standard: | IEEE802.3af/at |
|---|---|---|---|
| Mounting Options: | DIN-Rail / Wall-mount | Dimensions (WxDxH): | 95 x 70x 29mm |
| Weight: | 0.25Kg | Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption:: | <125W (Non-PoE<6W) | Operating Temperature:: | -40°C to 80°C (-40°F to 176°F) |
| Làm nổi bật: | 12~48VDC PoE Ethernet Switch,1 Gigabit PoE Ethernet Switch,FCC PoE Ethernet Switch |
||

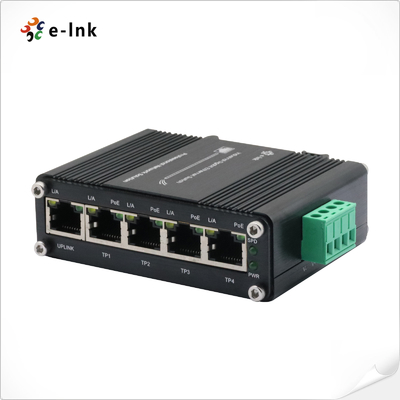

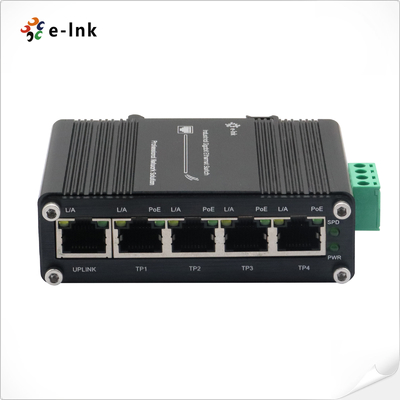

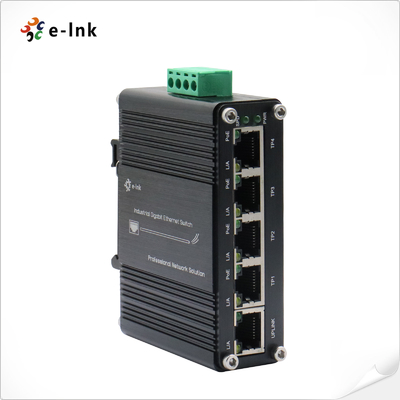

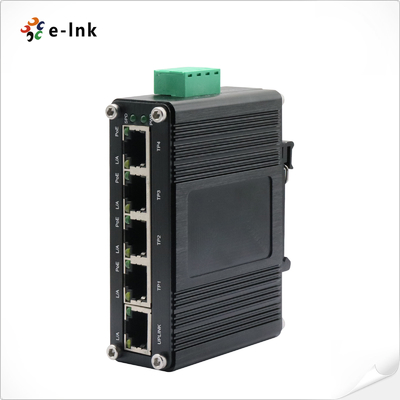

Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Overview
Mini Industrial 4-Port PoE + 1-Port Gigabit Ethernet Switch with 12~48VDC Power Input
This compact, unmanaged industrial Ethernet switch features 4 PoE ports (802.3at) and 1 Gigabit RJ45 port, supporting a wide 12~48VDC power input. Designed to meet stringent industrial standards, it offers robust, reliable operation even in harsh environments with vibration, shock, and extreme temperature conditions.
The switch is CE and FCC certified, ensuring full compliance with industry safety standards. It has successfully passed the 100% burn-in test, guaranteeing long-term durability for mission-critical industrial applications. This economical solution is ideal for industrial automation, security systems, and remote monitoring networks.
Features
► 5 x 10/100/1000BASE-T ports
► 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
► 12~48VDC wide range power input
► Supports 802.3x Flow control

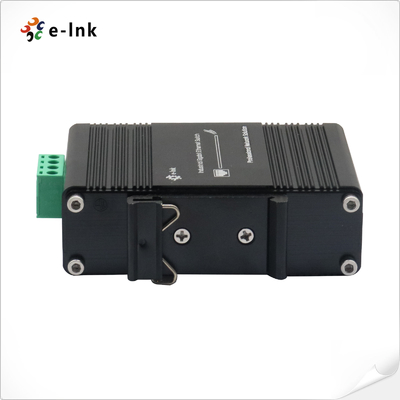

► Supports DIN-Rail and Wall-mount installation
► Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.3at Power over Ethernet Plus PSE | |
| IEEE 802.3af Power over Ethernet Plus | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property | Backplane bandwidth: 20Gbps; |
| Connector: | 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <125W (Non-PoE<6W) |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (WxDxH): | 95 x 70x 29mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR | Power |
| L/A | Link/Activity |
| PoE | Max 30W per port |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55032:2017 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
Ordeing Information
| Model | Description |
| LNK-IMC005GP | Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch |
| Mounting Options | Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | Power Supply is to be purchased separately |

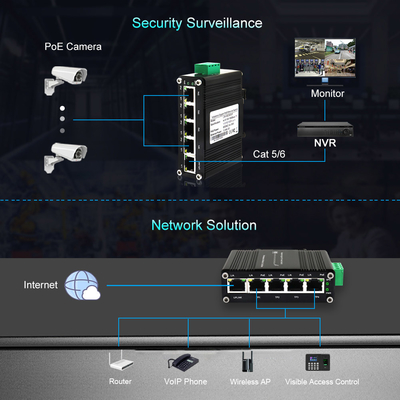

Application
