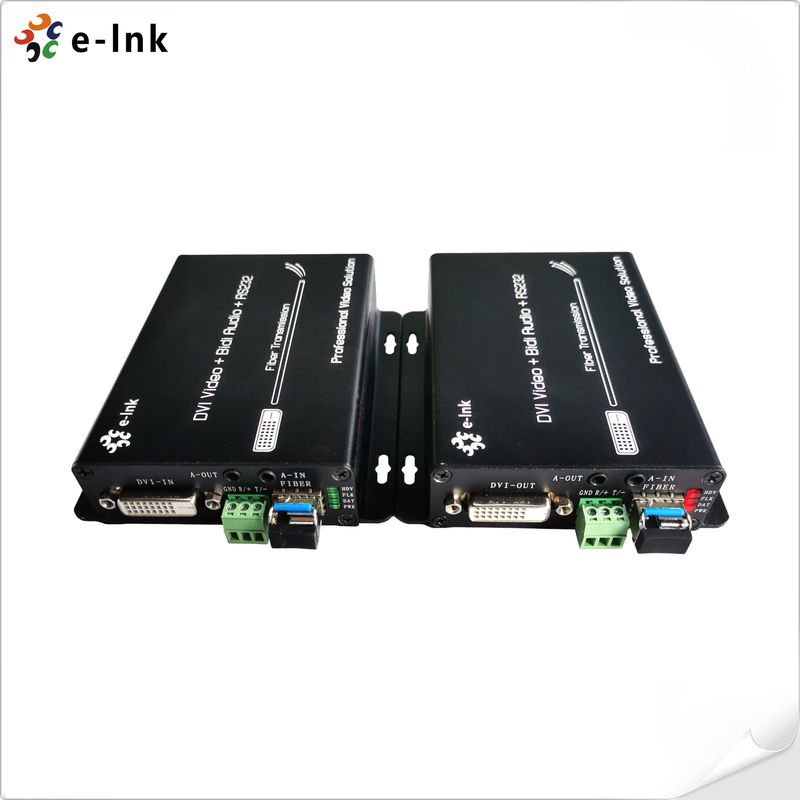

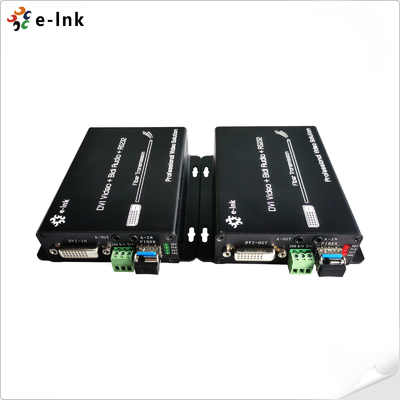

Multifunctional DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender

Hình ảnh lớn : Multifunctional DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	E-link
Chứng nhận:	CE, RoHS, FCC
Model Number:	LNK-DVI-1D1BA

Thanh toán:

Minimum Order Quantity:	1 pcs
Giá bán:	negotiated
Packaging Details:	DVI Video to Fiber Converter Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

Tiếp xúc

Chi tiết sản phẩm

Video Standards:	DVI 1.0 and HDCP 1.2	Audio Interface:	3.5MM external stereo audio
Optical fiber Interface:	SFP model – LC connector	Fiber type:	Single-mode
Wavelength:	850nm/1310nm/1550nm	Dimension (LxWxH):	120 x 83 x 28 (mm)
Làm nổi bật:	1Ch RS232 Fiber Optic Extender , Bidirectional Stereo Audio Fiber Optic Extender , RS232 Fiber Optic Extender

DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender

Overview

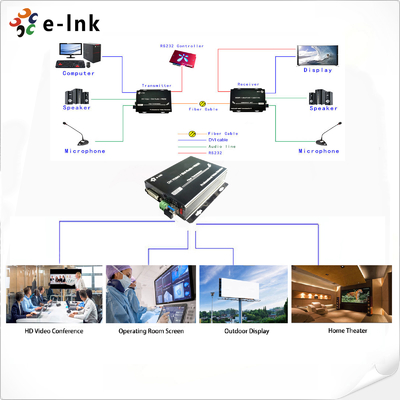

LNK-DVI-1D1BA Fiber Optic DVI Extender compact extender transmits 1080P video, KVM, RS232,

GPIO, and audio over a single fiber cable. Ideal for secure, long-distance AV integration in control

rooms, digital signage, and industrial systems, it delivers zero-latency performance with EMI-free

reliability.

Key Features:
✓ 1080P uncompressed video
✓ Multi-signal integration (KVM+serial+GPIO+audio)
✓ Fiber-optic security & interference immunity

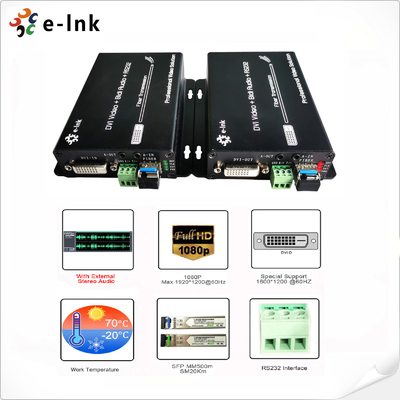

Features

Support resolution up to 1920*1200@60Hz
Special support 1600*1200 @60HZ
Compliance with DVI 1.0 and HDCP 1.2 standard
Built-in automatic adjustment system, make the image smooth, clear and stable
Built-in ESD protection system
Support external bidirectional stereo audio transmission

Technical Indexes

Parameter		Description
Video	Standards	DVI 1.0 and HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	2.97Gbps
	Compliant	1080P@50/59.95/60Hz( Max 19201200@60Hz) 1080P@23.98/24/29.97/30Hz, 1080i@50/59.94/60/Hz, 720P@23.98/24/29.97/30Hz, 720P@50/59.94/60Hz Special support 16001200 @60HZ

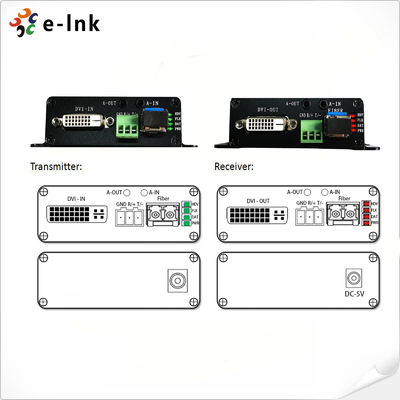

	Connector	Female DVI-D
	Impedance	100Ω
	DVI Cable Range	<5Meter (Resolution up to 1920*1200@60Hz)
Audio	Interface	3.5MM external stereo audio
	Transmitter	1Ch Input + 1Ch Output
	Receiver	1Ch Input + 1Ch Output
RS232	Interface	3-Pin Terminal Block
	Baud Rate	≤115200
	Data Bits	8 bits
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	850nm/1310nm/1550nm
	Interface bandwidth	3Gbps
	Transmission distance	Multi-mode fiber: <500M Single-mode fiber: 0~80km
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 4W
	Temperature	Operating: -20℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%

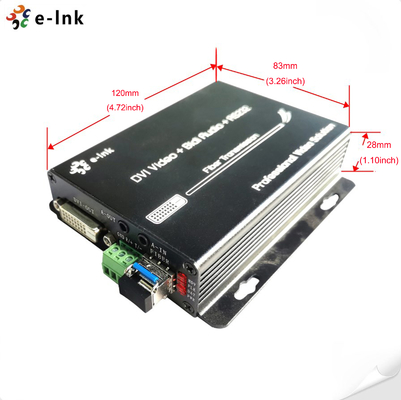

	Dimension (LxWxH)	120 x 83 x 28 (mm)
