1Ch 1080P Bidi DVI + 1Ch Bidi RS232 + 1Ch Bidi Stereo Audio + GPIO over Fiber Extender

Hình ảnh lớn : 1Ch 1080P Bidi DVI + 1Ch Bidi RS232 + 1Ch Bidi Stereo Audio + GPIO over Fiber Extender

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	E-link
Chứng nhận:	CE, RoHS, FCC
Model Number:	LNK-B-DVI-1DA1GO

Thanh toán:

Minimum Order Quantity:	1 pcs
Giá bán:	negotiated
Packaging Details:	Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Khả năng cung cấp:	1000PCS/tháng

Tiếp xúc

Chi tiết sản phẩm

Video Standards:	DVI 1.0; HDCP 1.2	Maximum pixel clock:	165MHz
Optical fiber Interface:	LC connector	Operating Temperature:	-5℃ ~ +70℃
Dimensions (WxDxH):	14811528mm	Power dissipation:	MAX 6W
Làm nổi bật:	1080P Fiber Extender , Bidi RS232 Fiber Extender , Bidi Stereo Audio Fiber Extender

1Ch 1080P Bidi DVI + 1Ch Bidi RS232 + 1Ch Bidi Stereo Audio + GPIO over Fiber Extender

Overview

LNK-B-DVI-1DA1GO Fiber Optic Extender

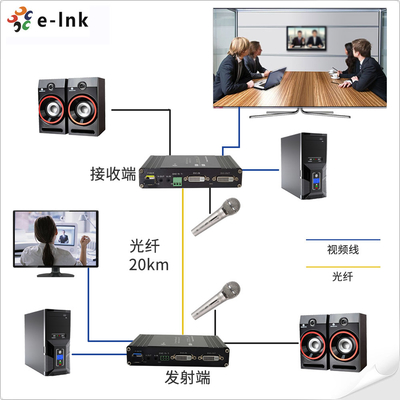

This compact extender transmits 1080P DVI video, RS232, GPIO, and audio over a single fiber cable.

Designed for secure, long-distance AV integration, it ensures zero-latency performance with

industrial-grade stability.

Key Features:
✓ Full HD 1080P resolution
✓ Multi-signal transmission (RS232 + GPIO + audio)
✓ Fiber-optic security & EMI immunity

Ideal for control rooms, digital signage, and industrial automation.

Features

Support video resolution up to 1920*1200P@60Hz

Support external stereo audio bi-directional transmission

Transmits Bi-directional DVI video signals up to 20km over one fiber optic cable

Built-in automatic adjustment system, make the image smooth, clear and stable

Simple to install, plug and play

Technical Indexes

Parameter		Description
Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	2.97Gbps
	Resolution	19201200@60Hz 19201080@50Hz 19201080@30Hz 19201080@25Hz 19201080@24Hz 1080I@60Hz 1080I@50Hz 1280720@60Hz 1280*720@50Hz

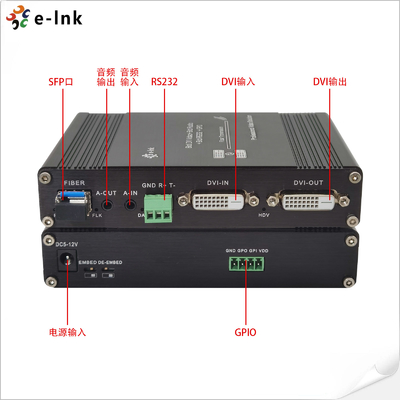

	Connector	DVI-D
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
Audio	Signal type	Stereo
GPIO	Interface	Industrial terminal
RS232	Interface	Industrial terminal
	Signal direction	Bi-directional
	Baud rate	Self-adaptive, Max:115200bps
	Data bits	8
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	3Gbps
	Transmission distance	standard 10km
Other	Power supply	The power adapter: DC 12V/1A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	14811528mm
	The warranty	1-year warranty
