Compliance: | DVI 1.0; HDMI v1.4 | Optical: | 1x SFP+ port |
---|---|---|---|
Operating Temperature: | 32° to +112° F. (0° to +50° C) | Dimensions (WxDxH): | 69mm x 42 mm x 18.2 mm |
Net Weight: | LNK-D4K-MM-S: 100 g/ LNK-D4K-MM-R: 100 g | Power Consumption: | LNK-D4K-MM-S: 3 watts/LNK-D4K-MM-R: 3.5 watts |
Làm nổi bật: | 4K Resolution DVI Fiber Extender,High-Quality Fiber Extender,HDMI Fiber Extender |
Overview

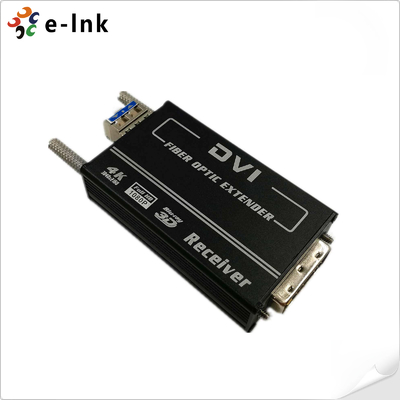

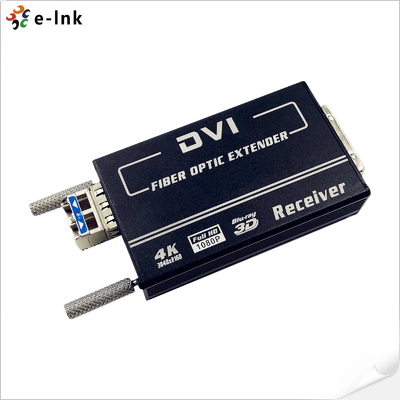

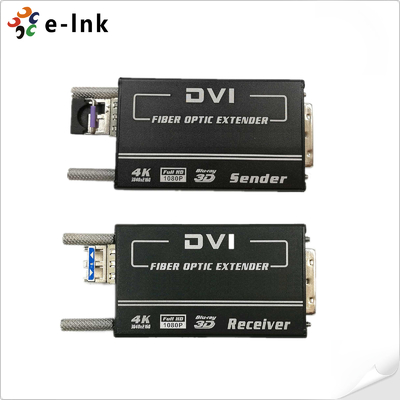

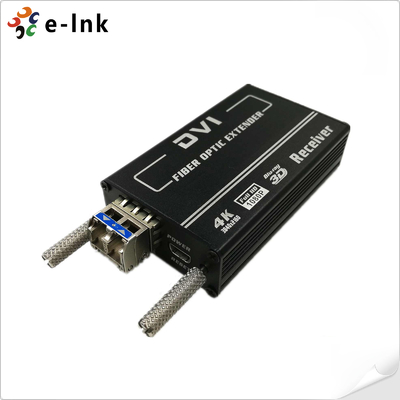

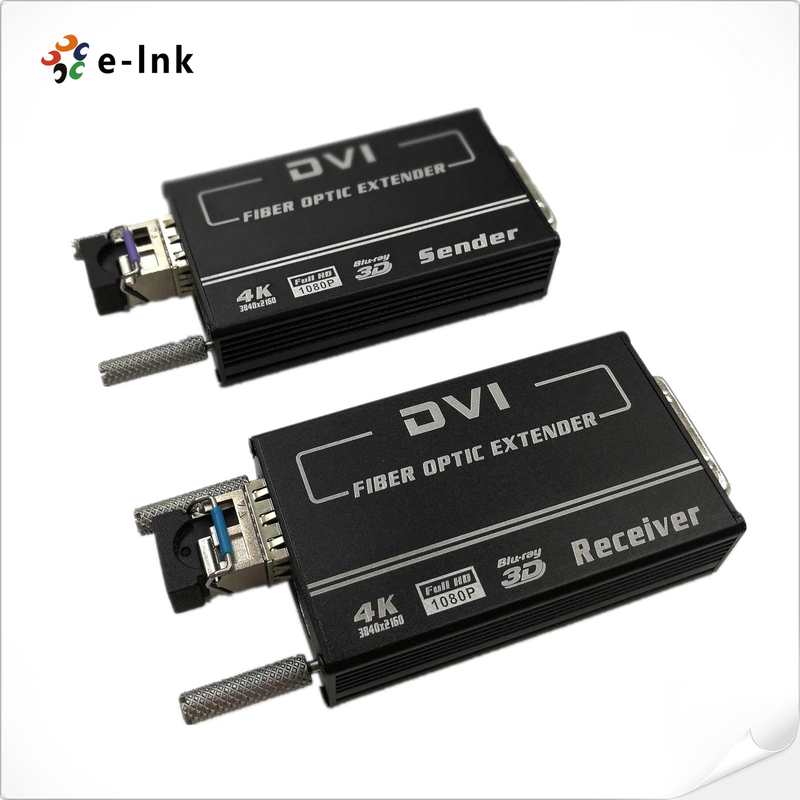

The LNK-D4K-MM Mini 4K DVI Fiber Optic Extender delivers high-resolution DVI signals over a single fiber cable, eliminating RF interference for superior performance and signal integrity. Supporting HDMI v1.4 and resolutions up to 4K (3840×2160@30Hz), this compact extender transmits video up to 300 meters, offering a reliable and cost-effective solution for long-distance audiovisual applications.
Features
► Support DVI 1.0 and HDMI v1.4
► Support EDID pass-through.
► Support resolutions up to 3840x2160/30P
► 7.1 channel LPCM, 192 kHz, 24-bit
► Support 3840*2160/60P(YUV 420)
► Plug and Play ,Built-in EQ(Receiver)
► Support 4K/30P@ Single-Link
► Two fiber,2-ways
► Bandwidth up to 10.2 Gbps
► Up to 300m distance by Multimode Fiber
► Support the HDCP 1.4
► Low RFI / EMI
► Support 3D TV pass-through
► Surface-mountable
Technical Indexes
Parameter | Specifications |
Compliance | DVI1.0,HDMI v1.4 |
Bandwith | 10.2 Gbps |
Supported Resolutions | 3840x2160/30P,3840*2160/60P(YUV 420), 4096*2160/60P(YUV 420) |
Digital Audio Support | 7.1 channel LPCM, 192 kHz, 24-bit audio capability |
Connections | |
DVI Input / DVI Output | 1x DVI-D 18+1 Male connector |
Optical | 1x SFP+ port |
Cable | |
Fiber Cable | 50/125μ OM3 Multi-Mode Fiber:≤300m |
DDC Support | |
EDID Support | Support EDID pass-through |
HDCP Pass-through Support | Yes, Support the HDCP 1.4 pass-through |
Mechanical | |
Construction | High-impact Alufer enclosure |
Dimensions (L x W x H) | 69mm x 42 mm x 18.2 mm |
Net Weight | LNK-D4K-SM-S: 100 g LNK-D4K-SM-R: 100 g |
Environmental | |
Operating Temperature | 32° to +112° F. (0° to +50° C) |
Storage Temperature | -40° to +185° F. (-40° to +85° C) |
Operating Humidity | 5% to 80% (non-condensing) |
Storage Humidity | 5% to 95% (non-condensing) |
Power Requirements | |
External AC Power Adapter | Input: 100-240VAC / 50-60Hz 0.2A Output: 5VDC, 2.0A |
Power Consumption | LNK-D4K-SM-S: 3 watts LNK-D4K-SM-R: 3.5 watts |
Warranty | |
Limited Warranty | 1 year |
Ordering Information
Model | Description |
LNK-D4K-MM-S | Mini 4KX2K DVI Fiber Sender Auto EDID,DC5V1A |
LNK-D4K-MM-R | Mini 4KX2K DVI Fiber Receiver Auto EDID,DC5V1A |

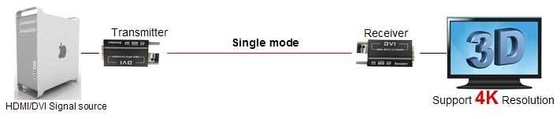

Application
