Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Bộ kết nối: | 6 x RJ45 | cổng quang: | 3 x 100Base-FX (Tùy chọn SFP, SC, FC, ST) |
|---|---|---|---|
| Nhiệt độ hoạt động: | -40°C đến 80°C (-40°F đến 176°F) | Kích thước (WxDxH): | 150 x 115 x 50mm |
| Trọng lượng: | 0,6kg | Vỏ bọc: | Vỏ nhôm |
| Làm nổi bật: | DIN-Rail Mounting PoE switch,3 port 100Base-FX PoE switch |
||

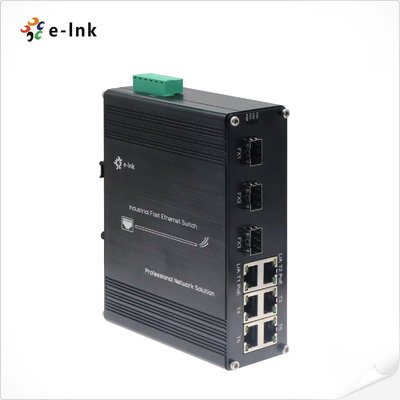

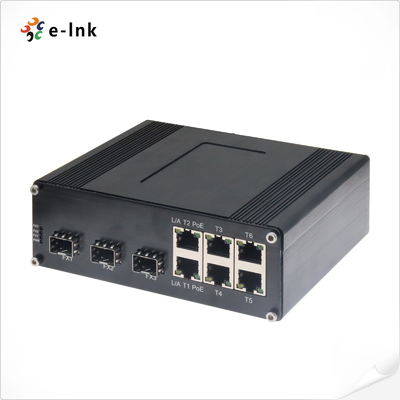

Industrial 6-Port 10/100T 802.3af/at PoE + 3-Port 100BASE-FX Ethernet Switch
Overview
The LNK-IMC306P Series is a hardened industrial PoE+ switch that delivers power and data connectivity
for demanding environments. Featuring 6×10/100Base-TX PoE+ ports (IEEE 802.3at) and 3×100Base-FX
fiber ports, this robust switch is designed to power and connect devices in harsh industrial settings.
Key Features:
✔ 6×PoE+ ports (up to 30W per port) for IP cameras, wireless APs, and other PDs
✔ 3×fiber ports supporting single/multi-mode fiber (1/2 core) for long-distance links (2km multi-mode /
20km+ single-mode)
✔ Industrial-hardened design: -40°C to +75°C operation, high EMI immunity, and vibration resistance
✔ Auto-negotiating copper ports with full/half-duplex and auto MDI/MDI-X support
Perfect for:
• Industrial IoT and automation networks
• Outdoor surveillance with IP cameras
• Distributed wireless systems
• Remote site deployments requiring both power and fiber connectivity
With its PoE+ capability and fiber uplinks, the LNK-IMC306P Series eliminates the need for separate power
supplies while providing noise-resistant fiber backhaul—ideal for extending networks in electrically noisy or
wide-area installations. The rugedized housing ensures reliability in extreme conditions, making it a cost-effective
all-in-one solution for power and data transmission.
Features
► Supports IEEE 802.3af/at PoE+ (30W per port)
► SFP, SC, FC, ST Optional
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs

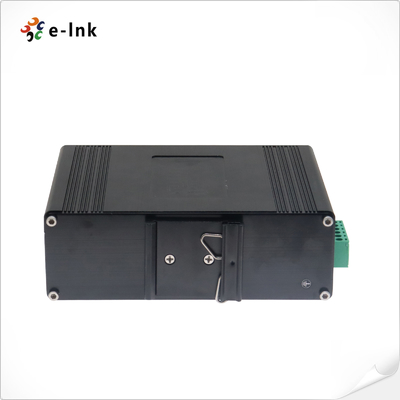

► Supports DIN-Rail mounting installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
► 6 10/100Base-TX + 3 100Base-FX
► 10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX | |
| IEEE802.3x Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| Packet Buffer Memory: | 512K bits |
| Processing Type: | Store-and-Forward |
| Address Table Size: | 1024 MAC Addresses |
| Interface | |
| Connector: | 6 x RJ45 |
| Optical Port: | 3 x 100Base-FX (SFP, SC, FC, ST Optional) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 180W Max. (PoE in use) |
| 5W Max. (PoE not in use) | |
| Standard: | IEEE802.3af/at |
| PoE: | |
| Port: | RJ45 Port 1 ~ Port 6 |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | PWR Status |
| PoE: | Per Port Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber: | FX1, FX2, FX3 |
| Dimensions (WxDxH): | 150 x 115 x 50 mm |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55024:2010 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
Ordering Information
| Model | Description |
| LNK-IMC306P | Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM |
| LNK-IMC306P-20 | Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC306PS-20 | Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC306PF-20 | Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC306P-SFP | Industrial 6-port 10/100BASE-T (6-port PoE+) + 3-port 100BASE SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed. |
| Power Options | ► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
