Mini Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch with PoE Passthrough

Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch with PoE Passthrough

Overview

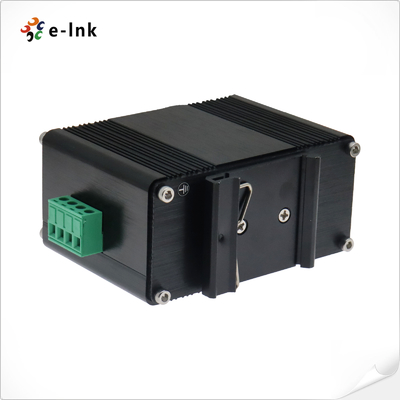

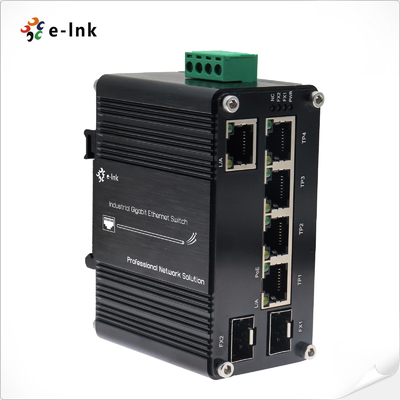

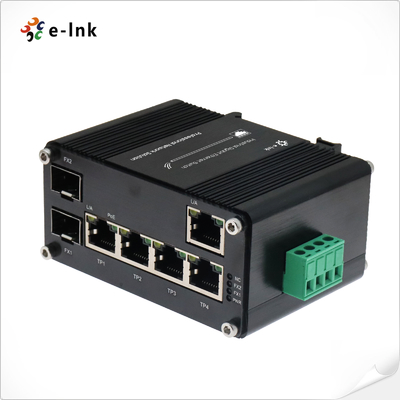

The E-link LNK-IMC205GPD-SFP Series is a compact industrial PoE passthrough switch that combines

power delivery and network expansion in harsh environments. Featuring 5×10/100/1000BASE-T ports

(4×PSE PoE outputs) and 2×100/1000M SFP slots, this innovative switch supports IEEE 802.3af/at/bt

standards with a total 71W PoE budget, while its unique PoE passthrough (PD+PSE) design solves

power challenges in remote deployments.

Key Features

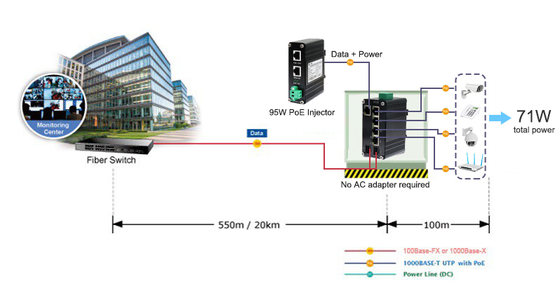

✔ PoE Passthrough Technology – Receives 95W input (802.3bt) and delivers 71W output to downstream

devices
✔ Extended Range – Doubles PoE reach from 100m to 200m without additional power wiring
✔ Flexible Power Options – 4×PSE ports (supports af/at/bt PDs) + 1×PD input (for daisy-chaining)
✔ Fiber Connectivity – Dual SFP slots for noise-resistant long-distance links
✔ Industrial Tough – DIN-rail mountable, wide-temperature operation, high EMI/ESD protection

Ideal for Power-Challenged Deployments
- Remote IP cameras (PTZ, thermal, etc.)
- Ceiling-mounted wireless APs
- Outdoor kiosks/digital signage
- Industrial IoT edge devices
- Tunnels, pipelines, and other hard-to-wire sites

Why Choose This Switch?
