Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Đầu vào năng lượng: | 12-48V DC (khối đầu cuối) | Tiêu chuẩn Ethernet: | IEEE802.3AF/at Power Over Ethernet (POE) |
|---|---|---|---|
| Sản lượng điện tối đa trên mỗi cổng: | Lên đến 30W (chế độ B thay thế) | Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Tiêu thụ năng lượng: | Tối đa 36W | Gán chân PoE: | 4/5(+) và 7/8(-) |
| Làm nổi bật: | 48V Industrial Gigabit PoE+ Injector,Power over Ethernet Gigabit PoE+ Injector |
||

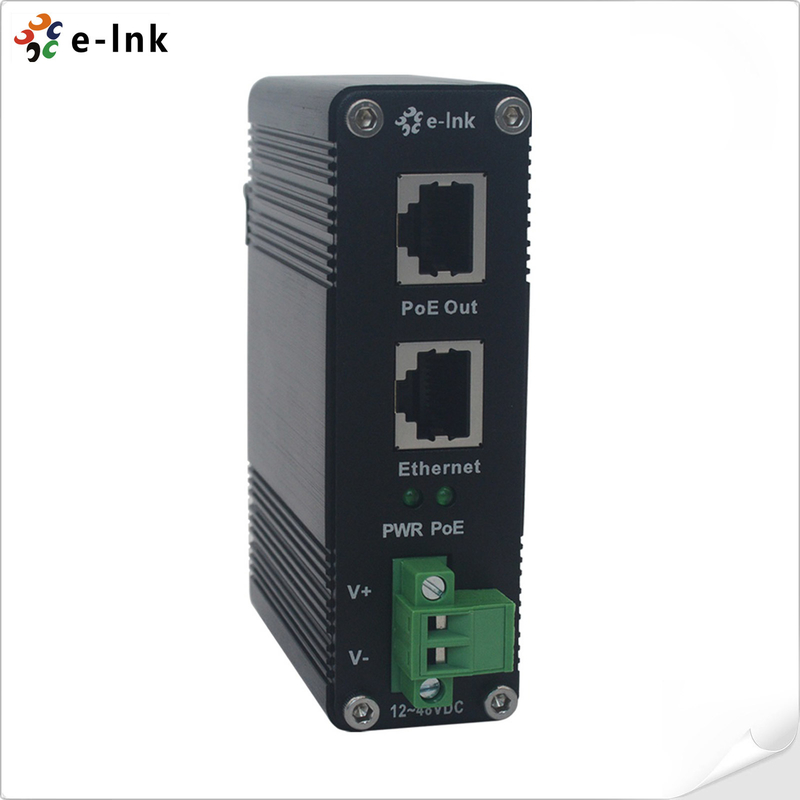

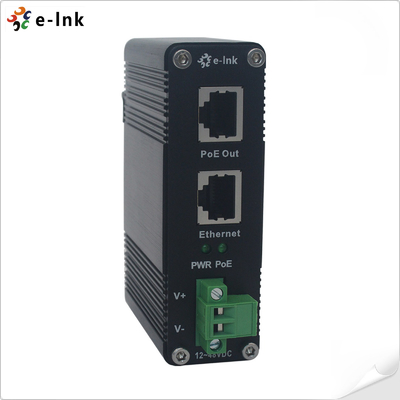

12~48V DC Input Power over Ethernet Industrial Gigabit PoE+ Injector
Overview
The LNK-INJ301-30 is a ruggedized Gigabit High Power PoE Injector designed to power
IEEE 802.3af/at PoE devices, such as cameras and access points, from a non-PoE LAN
switch within a 100-meter range. Both the Ethernet port (to connect to the switch) and the
PoE output port (to power PoE devices) support 10/100/1000Base-T speeds and comply
with IEEE 802.3ab and 802.3at standards. This PoE injector offers a flexible power
solution, with an input voltage range of 12-48VDC, making it ideal for high-availability
applications in harsh environments.
Features
12-48V DC power input
1 RJ45 Ethernet data input port + 1 RJ45 Power over Ethernet (PoE) output port
(Data + Power)
Compliant with IEEE802.3at PoE+ Power Sourcing Equipment
Supports 10/100/1000Base-TX Ethernet speeds
Includes a variety of LED indicators for PoE status monitoring
Rugged design with an operating temperature range of -40°C to 80°C (-40°F
to 176°F)
Compact dimensions: 95 x 70 x 30 mm
Durable aluminum alloy housing
Compatible with DIN-rail and wall-mount installation options
Technical Indexes
|
Standards: |
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Connector: |
2x RJ45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Terminal Block) |
|
Power Consumption: |
36W Max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at |
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
Max. Power per Port: |
30W Max per port (Alternative B Mode) |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500V |
|
|
ESD: 4KV/8KV |
|
Ordering Information
|
Model |
Description |
|
LNK-INJ301-30 |
12~48VDC Power Input Industrial Gigabit PoE+ Injector |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |

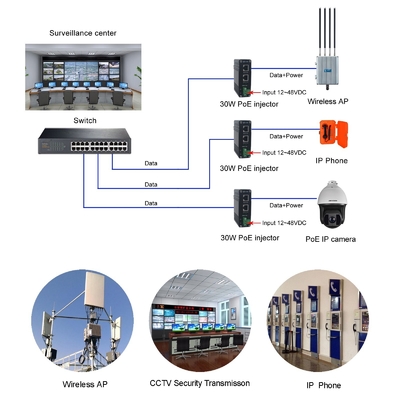

Application
