Compact Industrial PoE+ Ethernet Switch with Voltage Booster and SC Port 90W

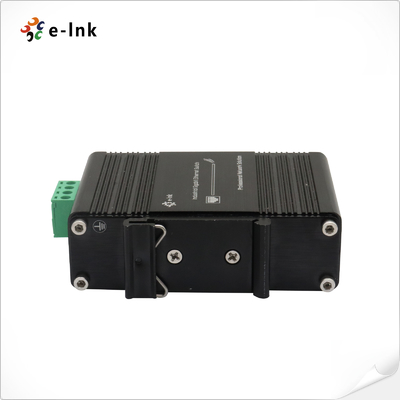

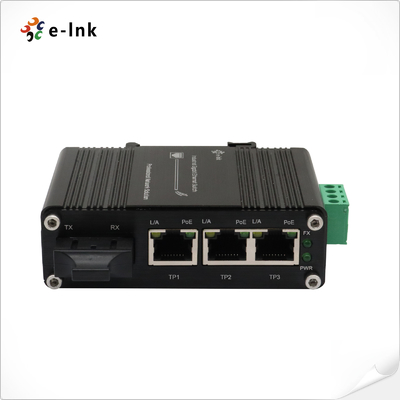

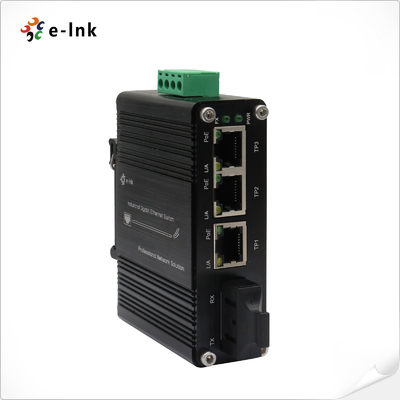

Hình ảnh lớn : Compact Industrial PoE+ Ethernet Switch with Voltage Booster and SC Port 90W

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	E-link
Chứng nhận:	ISO9001, CE, RoHS, FCC
Số mô hình:	LNK-IMC103GP
Tài liệu:	E-link LNK-IMC103GP Mini In....0.pdf

Thanh toán:

Số lượng đặt hàng tối thiểu:	1pcs
Giá bán:	USD $52-75
chi tiết đóng gói:	Gói xuất khẩu tiêu chuẩn công nghiệp công nghiệp năng lượng mặt trời
Thời gian giao hàng:	2~7 ngày làm việc
Điều khoản thanh toán:	PayPal, TT, Western Union, Moneygram, Alipay, T/T, D/P, D/A, L/C.
Khả năng cung cấp:	2000pcs mỗi tháng

Tiếp xúc

Chi tiết sản phẩm

Tên sản phẩm:	Công nghiệp 3 cổng 10/100/1000T POE + 1-Port 100/1000x SC Switch	Đầu nối:	3 x RJ45 với chức năng tiêm PoE+ 802.3at (Cổng 1 đến 3)
Năng lượng đầu vào:	12~48VDC, khối đấu dây 2 chân	Cổng quang học:	1 x SC 1000Base-X
Tiêu thụ năng lượng:	<95W (Không PoE<6W)	Kích thước (WXDXH):	95 x 70 x 30 mm
Cân nặng:	0,3kg	Vỏ:	Trường hợp nhôm
Làm nổi bật:	Compact Industrial PoE+ Ethernet Switch , Voltage Booster Industrial PoE+ Ethernet Switch

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SC Ethernet Switch with 12~48VDC Input and Voltage Booster

Mini Industrial Solar Power PoE Switch Overview

The LNK-IMC103GP Series is a Mini Industrial Unmanaged Gigabit PoE Switch designed

for harsh industrial environments and solar-powered applications. It features 3 10/100/1000BASE-T RJ45 PoE+ ports

compliant with IEEE 802.3at, and 1 SC-type 1000Base-X fiber port, enabling long-distance fiber uplink connectivity.

The switch is able to operate efficiently even in low-voltage power scenarios, such as solar energy systems,

thanks to its support for 12~48VDC wide voltage input and a built-in voltage booster.

With a total Power over Ethernet (PoE) power budget of up to 90 watts, this product is ideally suited for

powering Internet Protocol (IP) cameras, wireless access points, or the Internet of Things (IoT) devices

directly through Ethernet cables.

The product has been constructed in a rugged IP40-rated aluminium housing, which offers excellent

vibration and shock resistance. It functions reliably in extreme temperatures ranging from -40°C to +75°C.

The switch has been certified by CE and FCC, and has passed a 100% burn-in test,

ensuring long-term reliability in critical applications such as surveillance, industrial automation,

and outdoor connectivity.

This compact, DIN-rail or wall-mountable switch is an affordable and dependable networking solution

for edge deployments in the energy, transportation, and smart city environments.

Mini Industrial Solar Power PoE Switch Features

LNK-IMC103GP-SFP present the following features:

► 3 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-3)

► 1 1000Base-X SC Port

► 12~48VDC wide range power input with power booster function

► Up to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Mini Industrial Solar Power PoE Switch Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	4 Mbit
Switch Fabric:	12Gbps
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3)
Optical Port:	1 x SC 1000Base-X or 100Base-FX (auto detection)
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
Standard:	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	<95W (Non-PoE<6W)
LED Indicators:
PWR:	Power Status
L/A:	Ethernet LINK Status
FX:	Fiber LINK Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.3Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Mini Industrial Solar Power PoE Switch Ordering Information

Model	Description
LNK-IMC103GP	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m
LNK-IMC103GP-20	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km
LNK-IMC103GPS-20A	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km
LNK-IMC103GPS-20B	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 12~48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
