Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | Công tắc PoE công nghiệp 8 cổng | Năng lượng đầu vào: | 12~58VDC , Nguồn dự phòng (Khối đầu cuối 6 chân) |
|---|---|---|---|
| Tiêu thụ năng lượng: | Tối đa 5W | Cổng quang học: | 2 x 1000Base-FX (Tùy chọn SFP, SC, FC, ST) |
| Đầu nối: | 8 x RJ45 | Loại xử lý: | lưu trữ và chuyển tiếp |
| Nhiệt độ hoạt động: | -40 ° C đến 80 ° C (-40 ° F đến 176 ° F) | Kích thước (WXDXH): | 150 x 115 x 50mm |
| Làm nổi bật: | 8 Port Gigabit Industrial Ethernet Switch,Rugged Industrial Ethernet Switch,Plug and Play Industrial Ethernet Switch |
||

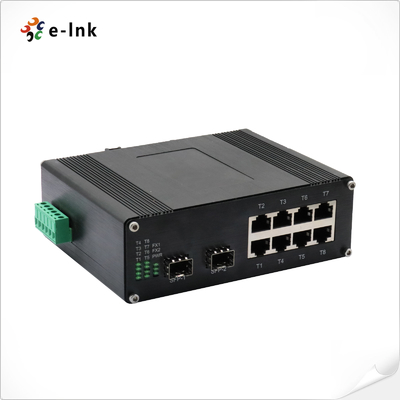

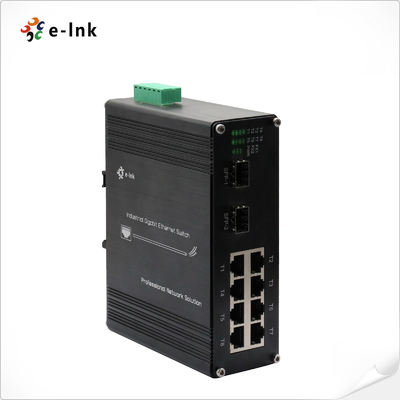

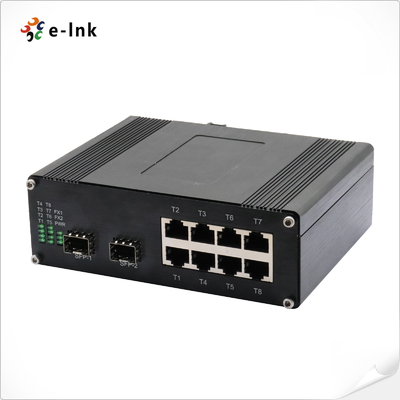

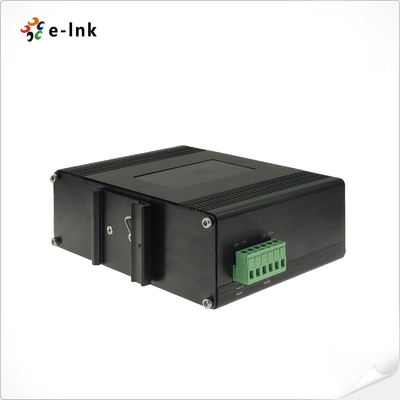

LNK-IMC208G Industrial Ethernet Switch Overview
The LNK-IMC208G Series is an 8-port 10/100/1000Base-TX + 2-port 1000Base-FX Hardened Industrial Ethernet Switch,
designed for rugged environments. Featuring 8 Gigabit RJ45 ports and 2 fiber optic ports,
it supports 10/100/1000Mbps auto-negotiation, full/half duplex, and auto MDI/MDI-X.
The fiber ports are compatible with Single-mode or Multi-mode SFP modules,
ensuring long-distance connectivity. Built for industrial reliability, this switch is ideal for
IP cameras, wireless access points, and remote network integration, offering high durability,
plug-and-play setup, and stable performance in harsh conditions.
LNK-IMC208G Industrial Ethernet Switch Features
LNK-IMC2008G presents the following characteristics:
► 8 10/100/1000Base-TX + 2 1000Base-FX
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► SFP, SC, FC, ST Optional
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
LNK-IMC208G Industrial Ethernet Switch Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3x Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
2.75M bits |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
4K MAC Addresses |
|
Interface |
|
|
Connector: |
8 x RJ45 |
|
Optical Port: |
2 x 1000Base-FX (SFP, SC, FC, ST Optional) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~58VDC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
5W Max. |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Fiber: |
FX1, FX2 |
|
Dimensions (WxDxH): |
150 x 115 x 50 mm |
|
Weight: |
0.6Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
LNK-IMC208G Industrial Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-IMC208G |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m |
|
LNK-IMC208G-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
|
LNK-IMC208GS-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM |
|
LNK-IMC208GF-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM |
|
LNK-IMC208G-SFP |
Industrial 8-port 10/100/1000BASE-T + 2-port 1000BASE SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
LNK-IMC208G Industrial Ethernet Switch Application
LNK-IMC208G Industrial Ethernet Switch Interface and Panel
