10G Media Converter RJ45 to Fiber Plug and Play Low Power Consumption

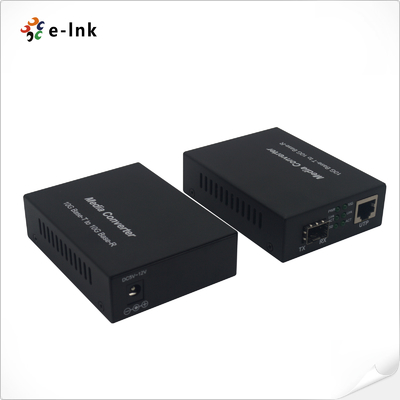

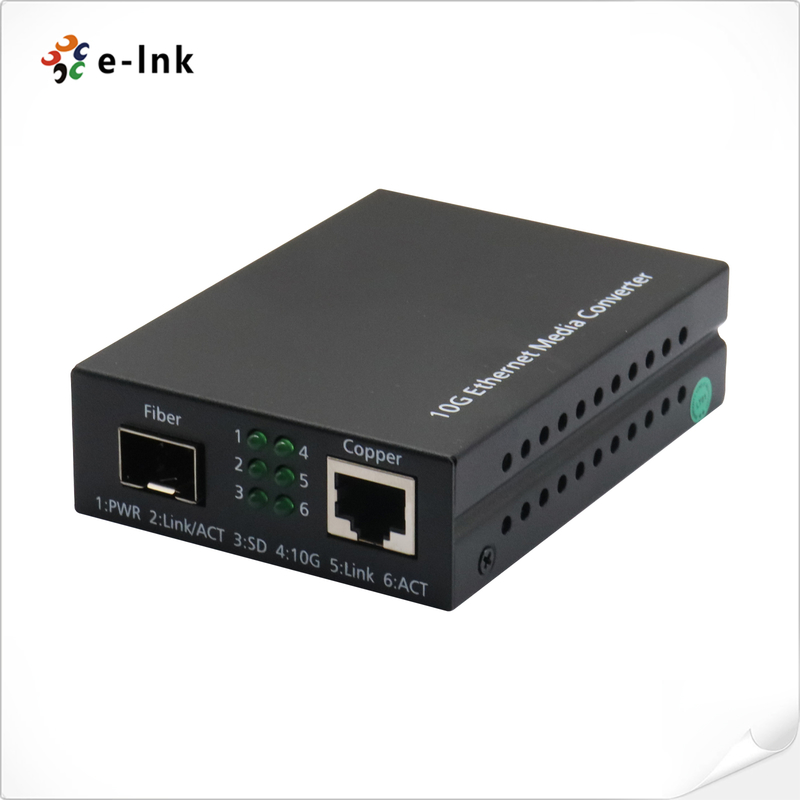

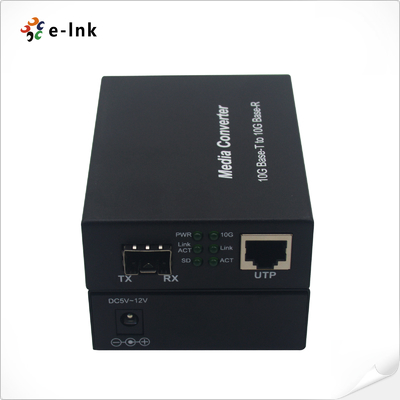

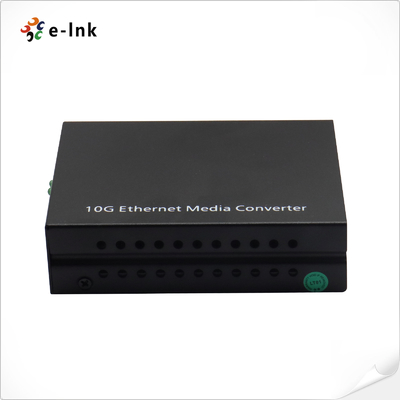

Hình ảnh lớn : 10G Media Converter RJ45 to Fiber Plug and Play Low Power Consumption

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	E-link
Chứng nhận:	CE FCC RoHS ISO9001
Số mô hình:	LNK-MC10G-SFP+
Tài liệu:	E-link LNK-MC10G-SFP 10G Me....1.pdf

Thanh toán:

Số lượng đặt hàng tối thiểu:	1 PC
Giá bán:	USD $50-65
chi tiết đóng gói:	Gói xuất tiêu chuẩn chuyển đổi phương tiện truyền thông 10g
Thời gian giao hàng:	2-7 ngày làm việc
Điều khoản thanh toán:	Moneygram, Western Union, T/T, D/P, D/A, L/C.
Khả năng cung cấp:	10000 mỗi miệng

Tiếp xúc

Chi tiết sản phẩm

Tên sản phẩm:	Bộ chuyển đổi phương tiện SFP+	Cung cấp điện:	12V một chiều
Sự tiêu thụ năng lượng:	Tối đa 5w	Nhiệt độ hoạt động:	0℃ đến 55℃
Độ ẩm tương đối:	5% đến 80% (không ngưng tụ)	Loại cổng:	Khe cắm RJ45, SFP
Làm nổi bật:	Low Power Consumption Media Converter , Plug and Play Media Converter , 10G Media Converter RJ45

10G Base-T to 10G Base-R Media Converter

10G Media Converter Overview

The E-link 10G Base-T to 10G Base-R Media Converter facilitates high-speed 10Gbps Ethernet conversion

between copper (10GBase-T RJ45) and fiber (10GBase-FX SFP+) networks. This product is equipped

with a high-performance Ethernet PHY chip, which guarantees low-latency, stable data transmission

for enterprise and data centre applications. This converter operates as a standalone unit

or can be rack-mounted in a 19" chassis for centralised deployment. Its plug-and-play installation,

industrial-grade durability, and flexible fibre compatibility (single-mode/multi-mode SFP+) make it ideal

for extending 10G networks, data centre interconnects, and high-bandwidth backbone links.

10G Media Converter Key Features

Supports jumbo frames to improve the transmission efficiency of large data packets
Transparent transmission, ultra-low latency , ensuring real-time data delivery
Support hot plug and play , easy to maintain and replace
Full status LED indication , intuitively displaying the working status
Easy installation , saving deployment time and labor costs
Stable and reliable long-distance connection to ensure continuous network operation
Multifunctional high-speed connection , adaptable to various application scenarios
Compact and portable body , space-saving and easy to carry
Plug and play , no complicated configuration required

10G Media Converter Technical Indexes

Standards	1000Base-T, 2.5GBase-T, 5Gbase-T, 10Gbase-T 1000Base-X, 2500Base-X, 5GBase-R , 10GBase-R
Media Supported	1000Base-T: Cat5 UTP/STP. MAX 100m; 2.5GBase-T: Cat5e UTP/STP. MAX 50m; 5GBase-T: Cat5e UTP/STP. MAX 50m; 10G Base-T: Cat6a UTP/STP. MAX 50m;
Port Type	RJ45, SFP Slot
Work Mode	1000Base-T to 1000Base-X 2.5GBase-T to 2500Base-X 5Gbase-T to 5GBase-R 10Gbase-T to 10GBase-R
Support Modules	10GBASE-SR/LR/ER/ZR: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m; 9/125μm single-mode fiber optic cable, up to 10/40/80km
Power Supply	12V DC
Power consumption	MAX 5W
Operation Temperature	0℃ to 55℃
Relative Humidity	5% to 80% (non-condensation)

10G Media Converter Ordering Information

Model	Description
LNK-MC10G-SFP+	10G Base-T to 10G Base-R Media Converter, SFP+ Ports, not including SFP+ Modules

10G Media Converter Application

10G Media Converter RJ45 to Fiber Plug and Play Low Power Consumption 1

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation, remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure by technicians and man-made damage caused by non-natural disasters, the purchaser can directly go to the purchasing point to replace the same type of products.Or a product of comparable performance. If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
