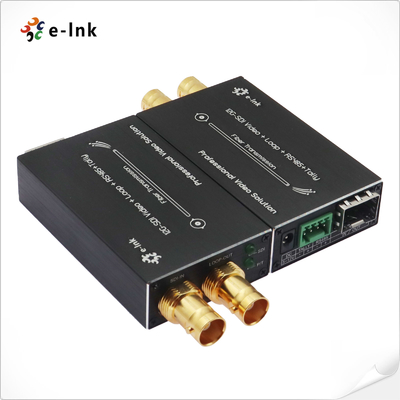

Mini 12G-SDI to Fiber Converter with Tally, RS485, and 4K Signal Loop Output

Hình ảnh lớn : Mini 12G-SDI to Fiber Converter with Tally, RS485, and 4K Signal Loop Output

Thông tin chi tiết sản phẩm:

Place of Origin:	Guangdong, China
Hàng hiệu:	E-link
Chứng nhận:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-M12G-1V1T1D
Tài liệu:	1E-link Communication & Net...og.pdf

Thanh toán:

Minimum Order Quantity:	1 pair
Giá bán:	$365-$405
Packaging Details:	SDI to Fiber Optic Extender Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Tiếp xúc

Chi tiết sản phẩm

Formats:	Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD), ST-259(SD)	Supported Resolution:	3840×2160@60Hz, 1080P, 1080I, 720P
Optical Transmission Bandwidth:	270MHz–12GHz	Power Supply:	5–15VDC, Max. 2W
Dimensions:	80×40×20mm	Operating Temperature:	-40℃ to 85℃
Làm nổi bật:	12G SDI to Fiber Converter , 4K SDI To Fiber Converter , Tally SDI To Fiber Converter

Mini 12G-SDI to Fiber Converter with Tally, RS485, and 4K Signal Loop Output

Overview

This mini 12G-SDI to Fiber Converter delivers uncompressed, broadcast-quality video

transmission over long distances, supporting resolutions up to 3840×2160@60Hz. It

features embedded 8-channel audio, integrated reclocking, Tally signal support, and

backward RS485 data transmission. With a compact design, LC fiber connector, and

12G-SDI loop-out, it ensures stable, high-speed performance for professional broadcast,

live production, and video transport applications.

Features

Compact mini design with LC fiber connector for easy installation

Supports 12G/6G/3G/HD/SD-SDI formats and up to 4K×2K (3840×2160@60Hz) resolution

Integrated reclocking for stable, lossless signal transmission

Supports Tally signal and backward RS485 data communication

Long-distance optical transmission up to 80 km

Technical Indexes

Formats	Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible	Compatible with DVB-ASI and AES10 (MADI)

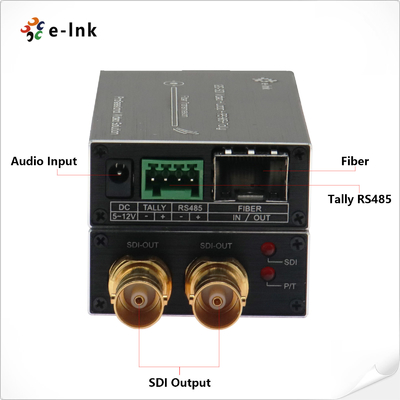

Input	1 x 12G-SDI on BNC
Output	1 x LC optical fiber
Output	1 x 12G-SDI loop-out on BNC
Supported Resolution	HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range	3840*2160@60Hz
Input cable specification	≤70m@12G SDI Belden 1694A
Output cable specification	≤70m@12G SDI Belden 1694A
Data type	Backward Tally
Data type	Backward RS485
Optical transmission bandwidth	270MHz～12GHz
Power	5-15 VDC
Power Consumption	2 W (Max.)
Dimensions (LxWxH)	80 x 40 x 20 (mm)
Storage Temperature	-40℃～80℃
Operating Temperature	-40℃～85℃

Ordering Information

Model	Description
LNK-M12G-1V1T1D-20	Mini-type 12G-SDI to Fiber Converter with Tally, Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
