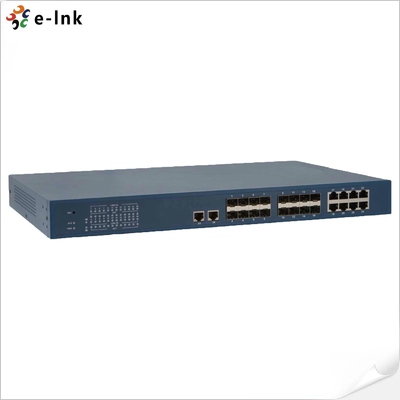

Managed Gigabit Switch 16 SFP Ports 10 RJ45 Ports Layer 4 QoS

Hình ảnh lớn : Managed Gigabit Switch 16 SFP Ports 10 RJ45 Ports Layer 4 QoS

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	E-link
Chứng nhận:	ISO9001, CE, RoHS, FCC
Số mô hình:	LNK-FS1610

Thanh toán:

Số lượng đặt hàng tối thiểu:	1pcs
Giá bán:	USD $379-399
chi tiết đóng gói:	Gói xuất khẩu tiêu chuẩn của Ethernet Switch được quản lý
Thời gian giao hàng:	2 ~ 7 ngày làm việc
Điều khoản thanh toán:	PayPal, TT, Western Union, Moneygram, Alipay, L/C, D/A, D/P, T/T.
Khả năng cung cấp:	2000pcs mỗi tháng

Tiếp xúc

Chi tiết sản phẩm

Cổng cố định:	16+10 Quản lý công tắc mạng Fiber quản lý	Tiêu thụ năng lượng:	60W
Năng lượng đầu vào:	Điện áp xoay chiều 90-264V	Kích thước (WXDXH):	440x230x44mm (khung tiêu chuẩn 1U19 inch)
Đầu ra điện:	5V/12A	Nhiệt độ hoạt động:	0 ° C ～ 40 ° C.
Làm nổi bật:	16 port gigabit switch with SFP , managed ethernet switch layer 4 QoS , POE switch 10 RJ45 ports

10G + 16SFP Management Gigabit Fiber Switch

10G + 16SFP Management Gigabit Fiber Switch Overview

The 16+10 Port Gigabit Managed Fibre Switch is a high-performance Layer 2/4 managed switch

designed for secure and reliable network deployment. With 16x 1000M SFP fibre ports

and 10x 10/100/1000M RJ45 copper ports, it supports wire-speed switching for maximum throughput.

Advanced security features include a built-in ARP and DoS defence system to protect

against network attacks and viruses. The switch is equipped with a range of management functions,

including QoS, STP, storm suppression, bandwidth control, IGMP snooping, ACL and DHCP snooping.

Ideal for SMEs, campus networks and metropolitan area networks (MANs), this switch provides reliability

and control in demanding environments.

10G + 16SFP Management Gigabit Fiber Switch Features

►Supports 802.1x authentication, ensuring secure user access control.

►Provides wire-speed filtering, store-and-forward switching, and a true non-blocking architecture for optimal performance.

►Features advanced management functions including port mirroring, port aggregation, and port speed limiting.

►Supports both port-based VLAN and IEEE 802.1Q VLAN for flexible network segmentation.

►Equipped with storm suppression, configurable for broadcast, multicast, and unknown unicast (DLF) traffic.

►Fully supports IEEE 802.1d Spanning Tree Protocol (STP), IEEE 802.1w Rapid Spanning Tree Protocol (RSTP),

and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) for enhanced network reliability.

10G + 16SFP Management Gigabit Fiber Switch Technical Indexes

Product Type	16+10 Management gigabit fiber network switches
Support agreement	IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak
Maximum frame length	9216B
Ports	16 1000M SFP optical ports and 10 10/100/1000M RJ45 ports
Network Media	1000Base-LX: using long wavelength laser (1310nm) over multimode and single mode fiber, multimode fiber the maximum distance is 550m, single mode 10-24km.
	1000Base-SX: 62.5μm multimode fiber the maximum transmission distance of 275m, 50μm multimode fiber using the maximum transmission distance of 550 meters.
	10Base-T: 3 classes or more than 3 kinds UTP; (maximum transmission distance of 200m), 14880P / S
	100Base-TX: 5 Category UTP; (maximum transmission distance of 100m), 148800P / S
	1000Base-T: CAT-5E UTP or Category 6 UTP; (maximum transmission distance of 100m), 1488000P / S
VLAN Address Table	4K
MAC address table	8K
Cache	32Mbits
Backplane bandwidth	52Gbit
Filtering and forwarding rate	10Mbps:14880pps
	100Mbps:148800pps
	1000Mbps:1488000pps
Dimensions	440x230x44mm(1U19-inch standard chassis)
Use of the environment	Operating Temperature: 0℃～40℃;
	Humidity 10% ~ 90% non-condensing
	Storage temperature: -20℃~70℃; Storage Humidity 5% ~ 90% non-condensing
Power	Input :90-264VAC ,50-60HZ; output: 5V/12A
Power consumption	Power consumption: 60W

10G + 16SFP Management Gigabit Fiber Switch Ordering Information

Item	Description
LNK-FS1610	10G + 16SFP Management Gigabit Fiber Switch: 16 1000M SFP Ports + 8 10/100/1000M RJ45 Port
