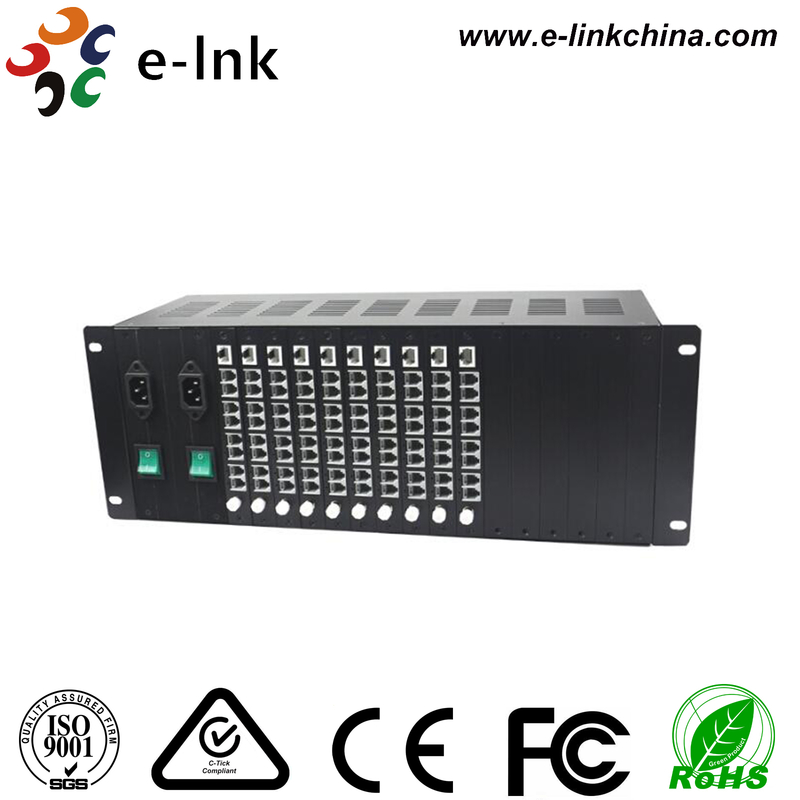

High Density 4U Mux Chassis 16 Slots Hot Swappable Modules Easy Install

Hình ảnh lớn : High Density 4U Mux Chassis 16 Slots Hot Swappable Modules Easy Install

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	E-link
Chứng nhận:	CE, RoHS, FCC
Số mô hình:	LNK-PR16-2A

Thanh toán:

Số lượng đặt hàng tối thiểu:	1 PC
Giá bán:	USD $139-159
chi tiết đóng gói:	Gói xuất khẩu tiêu chuẩn của Fiber Fiber Rack 4U
Thời gian giao hàng:	3-10 ngày làm việc
Điều khoản thanh toán:	L/C, D/A, D/P, T/T, Western Union, Moneygram, PayPal, thẻ tín dụng
Khả năng cung cấp:	1000pcs/tháng

Tiếp xúc

Chi tiết sản phẩm

Kết cấu:	tủ rack 19” 4U	Đầu ra điện:	DC5V 16A
Đầu vào năng lượng:	Điện áp AC: AC 100 ~ 260V; Tần suất: 50/60 Hz	Kích thước (mm):	485x280x176 (LxWxH)
Cân nặng:	7,4kg	Nhiệt độ hoạt động:	-30°C đến +55°C
Làm nổi bật:	4U Mux Chassis 16 slots , Hot swappable DVI converter modules , High density fiber converter chassis

4U Telephone Fiber Mux Rack

4U Telephone Fiber Mux Rack Overview

The LNK-PR-4U is a high-capacity, professional 4U chassis designed for robust and flexible telecommunications

deployment. Supporting a hybrid combination of up to 16 card-type modules (4-channel or 8-channel telephone

fibre multiplexers), it allows for a scalable system configuration of up to 128 channels. Engineered for

maximum reliability, it features a robust switch mode power supply (SMPS) that accepts 110/220 V AC input.

Its advanced electrical design prevents single-module failures from affecting others, ensuring unmatched

system stability. Built-in cooling fans enhance the chassis's longevity, and front-accessible, hot-swappable

modules and clear LED status indicators offer effortless maintenance, eliminating the need for system

downtime during upgrades or replacements.

4U Telephone Fiber Mux Rack Features

► Active/standby dual power supply design ensures uninterrupted system operation
► Equipped with two power supply options for reliable performance in diverse operating environments
► Supports simultaneous operation of 4-Channel or 8-Channel card-type Telephone Fiber Mux,

greatly enhancing system adaptability
► Hot-swappable modules allow easy maintenance and upgrades without service interruption

4U Telephone Fiber Mux Rack Technical Indexes

Parameter	Specifications
Number of slots	16
Structure	19” 4U rack
Card-type converter support	4Ch or 8Ch Card-type Telephone Fiber Mux
Power input	AC Voltage: AC 100~260V; frequency: 50/60 Hz
Power output	DC5V 16A
MTBF	> 100,000 hours
Power configuration	Single power supply; or Dual power supply for warm backup mode
Dimension (mm)	485x280x176 (LxWxH)
Weight	7.4KG
LED indication	POWER (power supply)
Construction	Metal
Operating temperature	-30°C to +55°C
Storage Temperature	-40°C to +85°C
Relative humidity	5%~90% (non condensing)

4U Telephone Fiber Mux Rack Ordering Information

Model	Description
LNK-PR16-2A	19" 4U Rack-Mount Chassis, 16-Slot, 16pcs 4CH or 8CH Card-type telephone fiber mux can be put in the Chassis, Dual Power Supply

4U Telephone Fiber Mux Rack Application

High Density 4U Mux Chassis 16 Slots Hot Swappable Modules Easy Install 0

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
