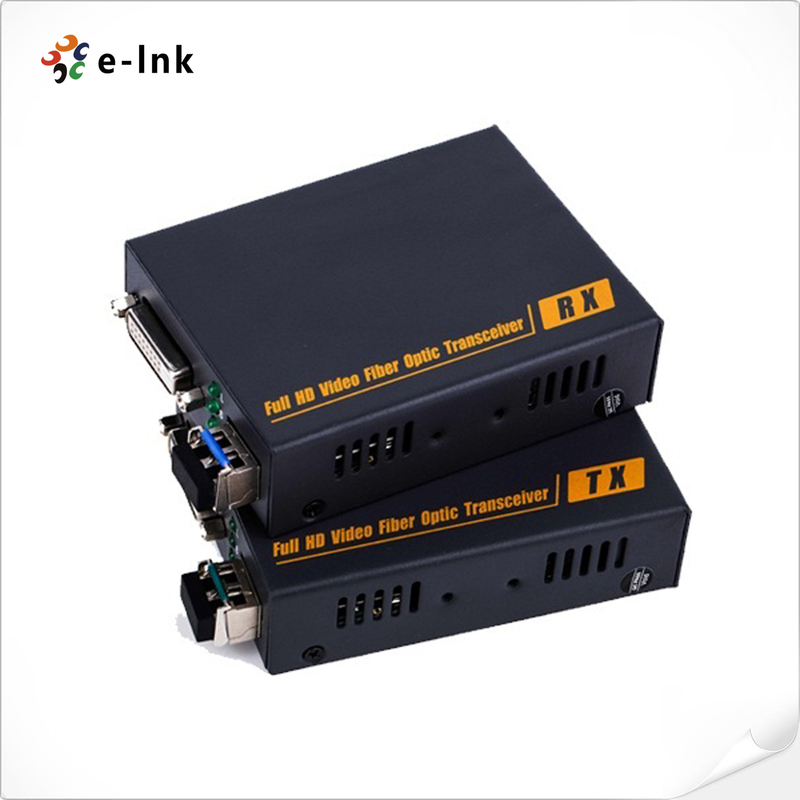

LNK-DVI-106 Single Fiber DVI Extender Full HD 1080P EDID Management

Hình ảnh lớn : LNK-DVI-106 Single Fiber DVI Extender Full HD 1080P EDID Management

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	E-link
Chứng nhận:	CE, RoHS, FCC
Số mô hình:	LNK-DVI-106

Thanh toán:

Số lượng đặt hàng tối thiểu:	1 PC
Giá bán:	USD $319-369
chi tiết đóng gói:	DVI trên gói xuất khẩu tiêu chuẩn mở rộng sợi
Thời gian giao hàng:	3-10 ngày làm việc
Điều khoản thanh toán:	L/C, D/A, D/P, T/T, Western Union, Moneygram, PayPal, thẻ tín dụng
Khả năng cung cấp:	1000pcs/tháng

Tiếp xúc

Chi tiết sản phẩm

Trình kết nối video:	DVI-D	Giao diện sợi quang:	Mô hình SFP - Đầu nối LC
Cung cấp điện:	DC 5V/2A	Tiêu tan điện:	Tối đa 5w
Kích thước:	94,57326mm	Nhiệt độ hoạt động:	-5 ℃ ~ +70
Làm nổi bật:	Single Fiber DVI Extender , DVI to Fiber Converter 1080P , DVI Extender with EDID Management

1080P DVI-D Fiber Optic Extender

1080P DVI-D Fiber Optic Extender Overview

The LNK-DVI-106 fibre optic extender is a high-performance solution for transmitting crystal-clear

digital DVI video signals over long distances. Using a single fibre optic cable, it reliably delivers high-resolution

video of up to 1080p/Full HD quality without any loss. The extender features EDID copy functionality

to ensure seamless compatibility between your video source and display. Designed for professional and

demanding environments, it provides exceptional stability and the robust data security inherent

in fibre optics, as well as immunity to electromagnetic interference. Its versatility makes it the ideal choice

for control rooms, digital signage, medical imaging and conference halls, where secure, long-distance,

high-definition video transmission is essential.

1080P DVI-D Fiber Optic Extender Features

► Transmits DVI video signals up to 2km–10km over a single fiber optic cable
► Supports resolutions up to 1920×1200 @ 60Hz for high-quality video output
► EDID copy function ensures compatibility with a wide range of display devices
► Fully compliant with DVI 1.0 and HDCP 1.2 standards
► Auto-detection for seamless matching between source and display devices
► Built-in automatic adjustment system delivers smooth, clear, and stable images
► Integrated ESD protection for enhanced system reliability
► Plug-and-play design for quick and simple installation

1080P DVI-D Fiber Optic Extender Technical Indexes

Parameter		Description
Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution range	Up to 1920X1200@60Hz
	Connector	DVI-D
	Impedance	100Ω
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	Single-mode 1310nm(optional)
	Interface bandwidth	10Gbps
	Transmission distance	Single-mode fiber: standard 2km；maximum 10km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 5W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	94.57326mm
	The warranty	1 year free warranty

1080P DVI-D Fiber Optic Extender Interfaces

LNK-DVI-106 Single Fiber DVI Extender Full HD 1080P EDID Management 0

LNK-DVI-106 Single Fiber DVI Extender Full HD 1080P EDID Management 1

1080P DVI-D Fiber Optic Extender Ordering Information

Model	Description
LNK-DVI-106	DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Multi-mode Fiber, 350 meters, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
LNK-DVI-S106-10	DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Single Mode, Single Fiber, 10KM, LC(SFP), including 1 Transmitter & 1 Receiver, used by pairs

1080P DVI-D Fiber Optic Extender Application

LNK-DVI-106 Single Fiber DVI Extender Full HD 1080P EDID Management 2

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
