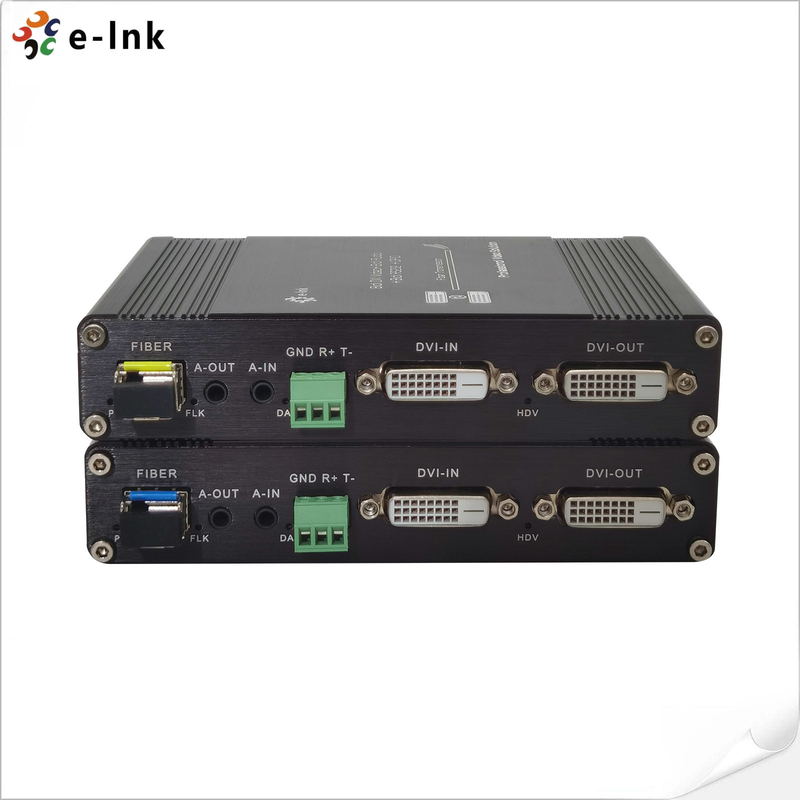

LNK-B-DVI-1DA1GO DVI Fiber Extender with Audio RS232 GPIO over Fiber

Hình ảnh lớn : LNK-B-DVI-1DA1GO DVI Fiber Extender with Audio RS232 GPIO over Fiber

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	E-link
Chứng nhận:	CE, RoHS, FCC
Số mô hình:	LNK-B-DVI-1DA1GO

Thanh toán:

Số lượng đặt hàng tối thiểu:	1 PC
Giá bán:	USD $259-279
chi tiết đóng gói:	DVI trên gói xuất khẩu tiêu chuẩn mở rộng sợi
Thời gian giao hàng:	3-10 ngày làm việc
Điều khoản thanh toán:	L/C, D/A, D/P, T/T, Western Union, Moneygram, PayPal, thẻ tín dụng
Khả năng cung cấp:	1000pcs/tháng

Tiếp xúc

Chi tiết sản phẩm

Trình kết nối video:	DVI-D	Giao diện sợi quang:	Đầu nối LC
Cung cấp điện:	DC 12V/1A	Tiêu tan điện:	Tối đa 6w
Kích thước:	14811528mm	Nhiệt độ hoạt động:	-5 ℃ ~ +70
Làm nổi bật:	DVI fiber extender with audio , DVI to fiber converter with RS232 , DVI video extender with GPIO

1Ch 1080P Bidi DVI + 1Ch Bidi RS232 + 1Ch Bidi Stereo Audio + GPIO over Fiber Extender

LNK-B-DVI-1DA1GO DVI Fiber Extender Overview

The LNK-B-DVI-1DA1GO fibre optic extender is a comprehensive, integrated solution for professional,

long-distance AV signal transmission. Seamlessly extending high-definition DVI video up to 1080p alongside

bi-directional RS232 serial data, GPIO control signals and external stereo audio, it operates over

a single fibre optic cable. Its multifunctional design eliminates the need for separate cabling, thus simplifying

installation and reducing costs. Designed for mission-critical environments, it provides exceptional signal

integrity, complete immunity to EMI/RFI interference and the inherent security of fibre optics. Its unparalleled

stability and all-in-one functionality make it the ideal choice for demanding applications in broadcast studios,

command and control centres, large-scale digital signage and sophisticated conference systems.

LNK-B-DVI-1DA1GO DVI Fiber Extender Features

► Transmits bi-directional DVI video signals up to 20km over a single fiber optic cable
► Supports video resolutions up to 1920×1200 @ 60Hz
► Enables bi-directional external stereo audio transmission for high-quality sound
► Supports bi-directional RS232 signal transmission with self-adaptive baud rate
► Provides GPIO (General-Purpose Input/Output) signal support for flexible applications
► Fully compliant with DVI 1.0 and HDCP 1.2 standards
► Auto-matching compatibility with various source and display devices
► Built-in automatic adjustment system ensures smooth, clear, and stable images
► Integrated ESD protection system for enhanced reliability
► Plug-and-play design for quick and easy installation

LNK-B-DVI-1DA1GO DVI Fiber Extender Technical Indexes

Parameter		Description
Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	2.97Gbps
	Resolution	19201200@60Hz 19201080@50Hz 19201080@30Hz 19201080@25Hz 19201080@24Hz 1080I@60Hz 1080I@50Hz 1280720@60Hz 1280*720@50Hz
	Connector	DVI-D
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
Audio	Signal type	Stereo
GPIO	Interface	Industrial terminal
RS232	Interface	Industrial terminal
	Signal direction	Bi-directional
	Baud rate	Self-adaptive, Max:115200bps
	Data bits	8
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	3Gbps
	Transmission distance	standard 10km
Other	Power supply	The power adapter: DC 12V/1A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	14811528mm
	The warranty	1-year warranty

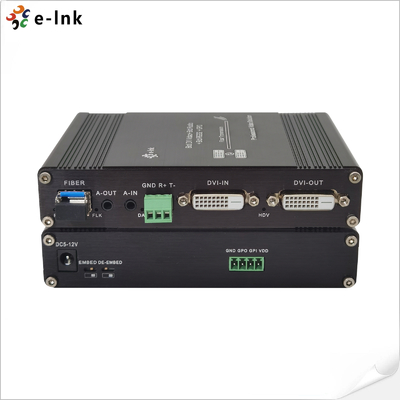

LNK-B-DVI-1DA1GO DVI Fiber Extender Interfaces

LNK-B-DVI-1DA1GO DVI Fiber Extender with Audio RS232 GPIO over Fiber 0

LNK-B-DVI-1DA1GO DVI Fiber Extender Application

LNK-B-DVI-1DA1GO DVI Fiber Extender with Audio RS232 GPIO over Fiber 1
