Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tiêu chuẩn: | IEEE802.3AF/at | Khoảng cách tối đa: | Cat5UTP lên đến 100m |
|---|---|---|---|
| Năng lượng đầu vào: | DC18V ~ 48V (POE: DC48V) | Tiêu thụ năng lượng: | Tối đa 8W. (POC không được sử dụng)/Max 60W. (POC đang sử dụng) |
| Kích thước (WXDXH): | 95 × 67 × 30 mm | Cân nặng: | 0,5kg |
| Nhiệt độ hoạt động: | -10˚C đến 60˚C (14˚F đến 140˚F) | Vỏ: | Trường hợp nhôm |

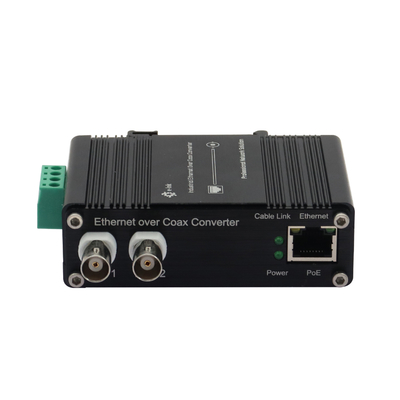

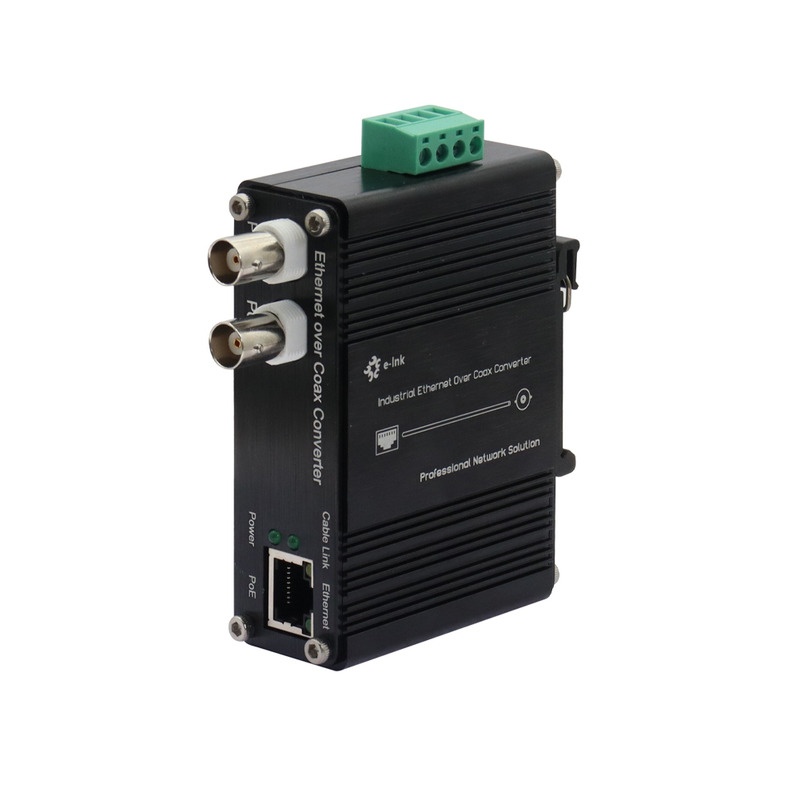

Industrial Ethernet over Coax Extender Overview
The LNK-DEC110 Series DIN-Rail Ethernet over Coaxial Converter is a high-performance industrial
device designed to extend your network effortlessly. It leverages existing coaxial cable infrastructure
to transmit both Ethernet data and significant power over remarkable distances of up to 1200 meters
for data and 300 meters for power. Featuring a robust 2-port BNC design, it can simultaneously power
and connect two independent branch lines with a total power budget of 100W (50W per port),
supporting high-bandwidth applications up to 100Mbps.
Engineered for mission-critical environments, this converter boasts exceptional lightning protection
and anti-interference capabilities, ensuring stable operation in harsh conditions. Its optional
industry-grade intelligent auto-monitoring module provides an unparalleled self-healing network
experience. This advanced feature continuously scans each circuit for link exceptions
and automatically initiates recovery procedures to prevent data loss and network downtime.
This guarantees a never-crash, always-secure connection, making the LNK-DEC110 Series
the ideal, reliable solution for professional CCTV surveillance systems and demanding remote
network extension projects.
Industrial Ethernet over Coax Extender Features
►Supports 10/100 Mbps Full Duplex Ethernet transmission up to 1200m (without PoE) or 300m (with PoE)
►Compatible with Coaxial Cable (optimal), 586B, CAT5e/6 transmission media
►Wide input voltage range: DC 18V–48V (PoE requires DC 48V)
►Simultaneous support for Power over Coax (PoC) and Power over Ethernet (PoE)
►Dual BNC interface design, supporting up to 7 branch line connections
►Plug & Play operation, utilizing existing network infrastructure for easy installation
►Compliant with IEEE 802.3 10/100Base-TX Ethernet protocol
►Equipped with 128-bit AES encryption and PoE+ power technology for secure, reliable transmission
►Built-in transient protection, with industrial-grade operating temperature range
►Enhanced reliability with lightning protection, surge protection, and strong anti-interference performance
Industrial Ethernet over Coax Extender Technical Indexes
|
Ethernet |
|
|
Standards |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX |
|
|
IEEE802.3af Power Over Ethernet |
|
|
IEEE802.3at Power Over Ethernet |
|
|
Cabling |
10Base-T: Cat 3,4,5, or above |
|
|
100Base-TX: Cat5 or above |
|
Maximum Distance |
Cat5UTP up to 100m |
|
Connector |
1 x RJ45 |
|
Coaxial |
|
|
Cabling |
Coaxial Cable (75 ohm) |
|
Connector |
1 BNC (female) |
|
Distance |
Up to 1200m (no PoE), 300m (with PoE) |
|
Data Rate |
|
|
Downlink (TX to RX) |
90Mbps (Max.) |
|
Uplink (RX to TX) |
90Mbps (Max.) |
|
Technology |
Power Line Communication (PLC) |
|
Protection |
|
|
Reverse Polarity |
Present |
|
Electrical and Mechanical |
|
|
Input Power |
DC18V~48V (PoE: DC48V) |
|
Power Consumption |
8W Max. (PoC not in use) |
|
60W Max. (Poc in use) |
|
|
LED Indicators |
|
|
Power (Power) |
RED (Power On: keep lighting; Power Off: lighting off) |
|
Coax (Cable Link) |
GREEN (Flicker: signal transmission) |
|
Ethernet |
SPD, LINK/ACT, PoE(Transmitter) |
|
PoE |
|
|
Standard |
IEEE802.3af/at |
|
Mode |
B Mode |
|
Port |
RJ45 |
|
Max. Power Per Port |
25.5W max.at RX(Powered Device) |
|
30W Max.at TX(Power Souring Equipment) |
|
|
Mode |
Positive(VCC+): RJ45 Pin 4,5 |
|
Negative(VCC-):RJ45 Pin 7,8 |
|
|
Dimensions (W x D x H) |
95 × 67 × 30 mm |
|
Weight |
0.5kg |
|
Casing |
Aluminum case |
|
Environmental |
|
|
Operation Temperature |
-10˚C to 60˚C (14˚F to 140˚F) |
|
Storage Temperature |
-40˚C to 85˚C (-40˚F to 185˚F) |
|
Relative Humidity |
5% to 90% non-condensing |
|
MTBF |
> 100,000 hrs |
|
Regulatory Approvals |
ISO9001 FCC Part 15 Class A EN55022 Class A Surge Protection RJ45: 1KV BNC: 2KV Power: 500V |
Industrial Ethernet over Coax Extender Ordering Information
|
Model |
Description |
|
LNK-DEC110-T/R |
DIN-Rail EoC Converter, 1200m transmission distance, including Transmitter and Receiver, not including power supply adapter |
|
LNK-DEC110P-T/R |
DIN-Rail EoC Converter with PoE+, 300m transmission distance, including Transmitter and Receiver, not including power supply adapter |
Industrial Ethernet over Coax Extender Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
