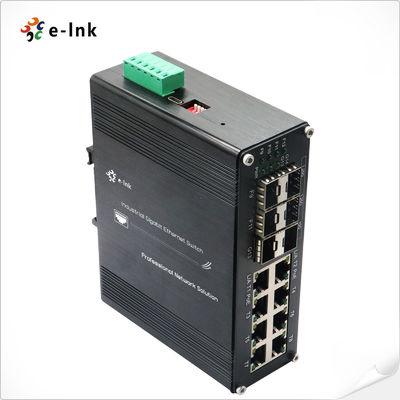

Industrial PoE+ Switch 8-Port 802.3at Managed with 10G SFP+ Fiber Uplinks

Industrial PoE+ Switch 8-Port 802.3at Managed with 10G SFP+ Fiber Uplinks
Industrial PoE+ Switch 8-Port 802.3at Managed with 10G SFP+ Fiber Uplinks Industrial PoE+ Switch 8-Port 802.3at Managed with 10G SFP+ Fiber Uplinks

Hình ảnh lớn :  Industrial PoE+ Switch 8-Port 802.3at Managed with 10G SFP+ Fiber Uplinks

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: E-link
Chứng nhận: ISO9001, CE, RoHS, FCC
Số mô hình: ETH-IMC2408MP
Thanh toán:
Số lượng đặt hàng tối thiểu: 1pcs
Giá bán: USD $179-199
chi tiết đóng gói: Gói xuất khẩu tiêu chuẩn Poe Switch quản lý công nghiệp
Thời gian giao hàng: 2 ~ 7 ngày làm việc
Điều khoản thanh toán: PayPal, TT, Western Union, Moneygram, Alipay, T/T, D/P, L/C, D/A.
Khả năng cung cấp: 2000pcs mỗi tháng
Chi tiết sản phẩm
Đầu nối: 8 x RJ45 Tiêu thụ năng lượng: <240W
Năng lượng đầu vào: 48 ~ 57VDC, công suất dự phòng (khối đầu cuối 6 chân) Ngân sách Poe: Ngân sách Poe lên tới 240 watt
USB-C: 1 x USB-C (để quản lý) Kích thước (WXDXH): 149 x 114 x 50 mm
Cân nặng: 0,55kg

Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch


Industrial Managed 8-Port Managed Ethernet Switch Overview


The ETH-IMC2408MP Series is a hardened L2+ managed switch designed for demanding environments. It combines 8× 10/100/1000Base-T RJ45 ports with 802.3at PoE+ support, 4× 1G SFP fiber slots, and 2× 10G SFP+ fiber slots for high-speed uplinks. The copper ports auto-negotiate speed and duplex mode, while the fiber interfaces support various single-mode or multi-mode transceivers. Ideal for powering and connecting devices like IP cameras and wireless access points across remote locations, it offers robust network integration with operational simplicity.


Industrial Managed 8-Port Managed Ethernet Switch Features


  • High-Density, Multi-Gigabit Connectivity: Features 8x 10/100/1000Base-T RJ45 ports with 802.3at PoE+, 4x 1G SFP slots, and 2x 10G SFP+ slots, offering                 versatile and scalable network aggregation.
  • Robust Power over Ethernet (PoE): Compliant with IEEE 802.3af/at standards, delivering up to 30W per port to directly power devices like IP phones, cameras,             and wireless access points.
  • Advanced PoE Management via DIP Switch: Simplifies operation with one-touch functions for VLAN configuration, Ring Network protection, PoE reset, and                  extended 250-meter PoE transmission mode.
  • Smart RJ45 Ports: Each port supports auto-negotiation, Auto MDI/MDIX, and full/half-duplex modes for plug-and-play installation and cable flexibility.
  • Streamlined Management: Offers modern USB-C connectivity for easy console access, eliminating the need for a legacy RS232 serial port.
  • Optimized Performance: Supports 9K Jumbo Frames for efficient large data transfers and complies with IEEE 802.3az Energy Efficient Ethernet (EEE) to reduce           power consumption.
  • Industrial Durability: Housed in a sturdy IP40-rated aluminum case designed for reliable operation in demanding environments and supports convenient DIN-Rail           installation.


Industrial Managed 8-Port Ethernet Switch Technical Indexes



Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3ae 10GBase-R

IEEE802.3p QoS

IEEE802.1d Spanning Tree

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

1,488,000,000pps (10000Mbps)

Packet Buffer Memory:

12M bits

Processing Type:

Store-and-Forward

Backplane bandwidth

110Gbps

Max Packet Length:

9K Bytes Jumbo Frame

Address Table Size:

8K MAC Addresses

Interface

Connector:

8 x RJ45

RS485:

1 x RS485 (Optional)

Optical Port:

4 x 1000Base-X SFP

2 x 10G Base-SR/LR SFP+

USB-C:

1 x USB-C (for Management)

RS485 Serial Interface (Optional)

Physical interface

Industrial standard 3-pin screw terminal

Data type

1Ch RS485 Bi-Direction

RS-485 signals

Data+, Data-, GND

Serial port line distance (copper)

1000 meters

Baud rate

0 ~ 800kbps

PoE (Power over Ethernet)

Standard:

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

PoE Budget:

Up to 240-watt PoE budget

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

48~57VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

8W Max.(PoE in Use<240W)

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

DIP Switch

4-digit DIP switch function

Industrial PoE+ Switch 8-Port 802.3at Managed with 10G SFP+ Fiber Uplinks 0

DIP

Function

Settings

SW 1

VLAN

ON - Enabled

OFF - Disabled

SW 2

Ring Management

ON - Enabled

OFF - Disabled

SW 3 (to be upgraded)

250m PoE Network

ON - Enabled

OFF - Disabled

SW 4 (to be upgraded)

PoE Reset

ON - Enabled

OFF - Disabled

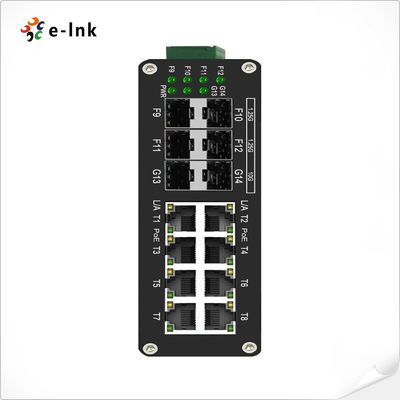

LED Indicators:

PWR:

Power Status

Ethernet (Per Port):

Link/Activity

PoE (Optional)

PoE Status

Fiber:

Gigabit SFP Port: F9~F12

10G SFP+ Port: F13, F14

Dimensions (WxDxH):

149 x 114 x 50 mm

Weight:

0.55Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail mount

Software Features

Redundancy Protocols

Support STP/RSTP/MSTP/ERPSv2, Link Aggregation

Multicast Support

Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q

VLAN

Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,

Time Management

SNTP

QOS

Flow-based redirection

Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)

ACL

Port-based Issuing ACL

ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc

PoE Management

Total power limit of PoE power supply

PoE output power allocation
PoE output priority configuration
PoE working status
Scheduling of PoE operation

Diagnostic Maintenance

Support port mirroring, Syslog, Ping

Management Function

Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT

Alarm Management

Support 1 way relay alarm output, RMON, TRAP

Security

Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0

Support DHCP Snooping, Option 82,802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit

Advance Layer 2+ Features

IPv4/IPv6 Management

Static Route

Regulatory Approvals

ISO9001, CE, RoHS, FCC

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)


Industrial Managed 8-Port Ethernet Switch Ordering Information



Model

Description

ETH-IMC2408MP

Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed

Power Options

► DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.


Industrial Managed 8-Port Ethernet Switch Application



Industrial PoE+ Switch 8-Port 802.3at Managed with 10G SFP+ Fiber Uplinks 1


After-Sales and Warranty Policy


It is composed of online customer service and telephone customer service, providing product consultation

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure by technicians and man-made damage

caused by non-natural disasters, the purchaser can directly go to the purchasing point to replace the same type of products.

Or a product of comparable performance. If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.


[The following circumstances do not fall within the scope of replacement and free maintenance]


1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
