Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | Bộ chuyển đổi phương tiện Ethernet công nghiệp | Dimensions: | 95 x 70 x 30 mm |
|---|---|---|---|
| Năng lượng đầu vào: | 12~48VDC, Khối đầu cuối 4 chân | Tiêu thụ năng lượng: | Tối đa 5W |
| Loại xử lý: | lưu trữ và chuyển tiếp | Kích thước (WXDXH): | Kích thước (WXDXH) |
| Cân nặng: | 0,25kg | Tùy chọn gắn kết: | Din-Rail / Wall-Mount |
| Làm nổi bật: | Hardened SFP Industrial Media Converter,Hardened Design Industrial SFP Media Converter,EN55022 Industrial Media Converter |
||
Mini Industrial Ethernet Media Converter Overview

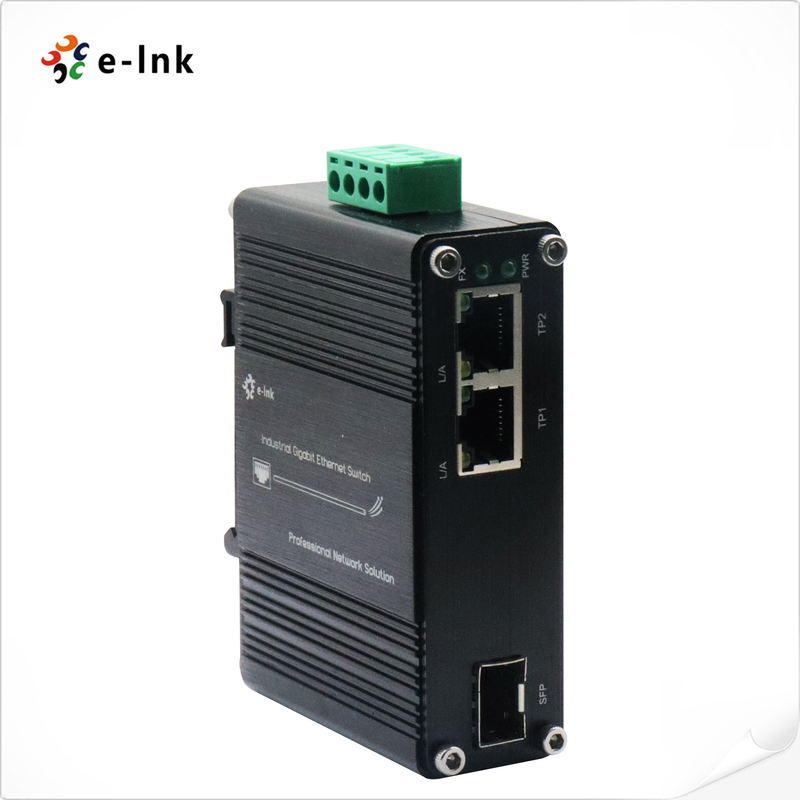

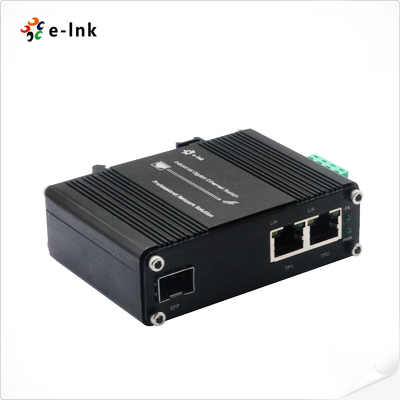

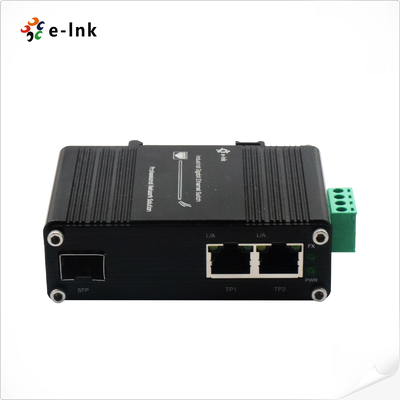

The LNK-IMC1200G-SFP Series Industrial DIN Rail Gigabit Media Converter is a reliable solution
for extending Ethernet over fiber in harsh environments. This hardened media converter has been designed
with a rugged enclosure and is compliant with EN55022 standards. It is able to operate in extreme temperatures
ranging from -40°C to +75°C, making it ideal for industrial automation, transportation and outdoor applications.
This Gigabit media converter is equipped with 10/100/1000Base-T copper ports and 100/1000Base-X SFP slots,
providing users with a range of flexible fibre options. These options include external SFP modules for single-mode
or multi-mode fibre(1 or 2-core) offering enhanced versatility. The Ethernet port supports full-duplex
and half-duplex modes for seamless connectivity and high-speed data transmission.
The LNK-IMC1200G-SFP is designed for straightforward installation and reliable performance
in critical networks, thanks to its DIN rail mounting and wide power input compatibility. This product is ideal
for extending network distances of up to 120 km when used with the appropriate SFP modules.
Mini Industrial Ethernet Media Converter Features
LNK-IMC1200G-SFP Series present the following characteristics:
Mini Industrial Ethernet Media Converter Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE802.3z 1000Base-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Processing Type: |
Store-and-Forward |
|
Forward Filter Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
1 Mbit |
|
Max Packet Length: |
9K Bytes |
|
Address Table Size |
2K MAC Addresses |
|
Interface |
|
|
Connector: |
2 x RJ45 |
|
Optical Port: |
1 x SFP 1000Base-X or 100Base-FX (auto detection) |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, 4-pin terminal block |
|
Power Consumption: |
5W Max. |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
L/A: |
Data LINK Status |
|
SPD: |
Ethernet Status |
|
100M/1000M: |
Fiber LINK Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
|
|
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|
Mini Industrial Ethernet Media Converter Ordering Information
|
Model |
Description |
|
LNK-IMC1200G-SFP |
Hardened 2-Port 10/1001000BASE-TX to 100/1000BASE-X SFP Media Converter |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |

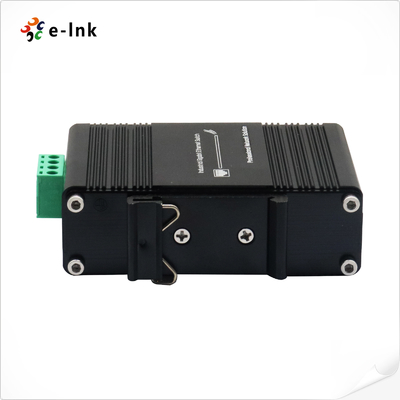

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
