Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Đầu nối: | 8 x RJ45 | Cổng quang học: | 2 x 1000Base-X SFP |
|---|---|---|---|
| Tiêu thụ năng lượng: | Tối đa 253W. (Poe đang sử dụng) | Năng lượng đầu vào: | 48 ~ 57VDC, công suất dự phòng (khối đầu cuối 6 chân) |
| Kích thước (WXDXH): | 150 x 115 x 50mm | Cân nặng: | 0,6kg |
| Làm nổi bật: | 2 Fiber Industrial Ethernet Switch,PoE Ports Industrial Ethernet Switch |
||

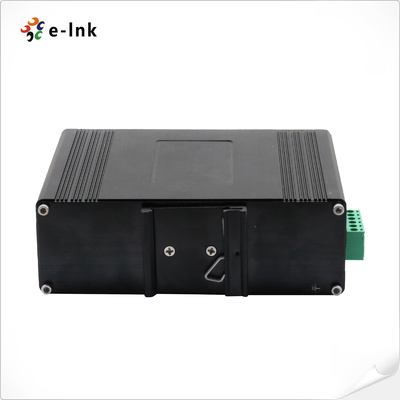

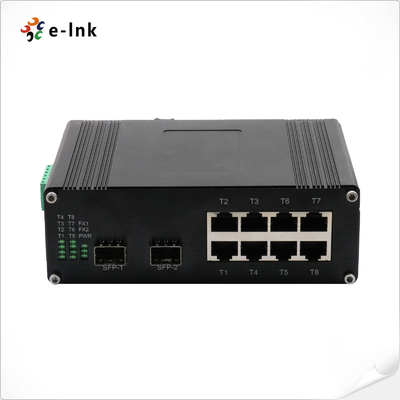

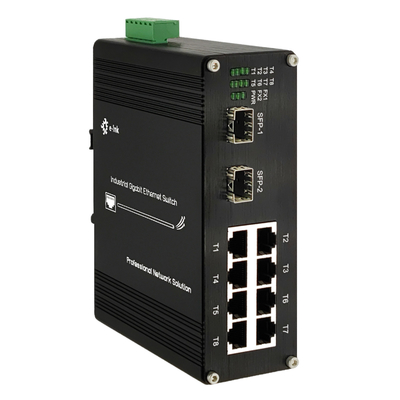

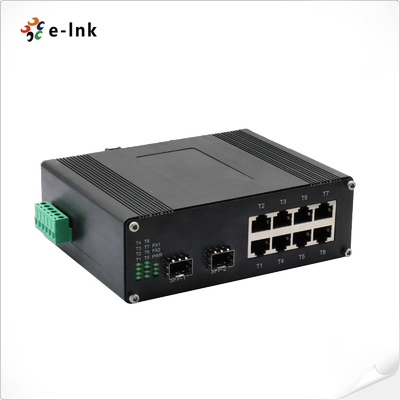

LNK-IMC208GP Industrial 8-Port Ethernet Switch Overview
The LNK-IMC208GP Series is an industrial-grade 8-port Gigabit Power over Ethernet switch
with two fibre ports, designed for use in harsh environments. The device features
8 x 10/100/1000Base-T PoE+ ports (30W per port, 240W total) and 2 x 100/1000Base-FX SFP slots,
delivering power and data over a single cable to IP cameras, wireless access points,
and other PD devices. The fibre ports support single/multi-mode SFP modules
for long-distance connectivity of up to 120km. This switch is ideal for industrial automation,
outdoor surveillance and smart transportation systems. It has an operating temperature
of -40°C to 75°C, an IP40 metal housing and DIN-rail mounting.
LNK-IMC208GP Industrial 8-Port Ethernet Switch Features
Auto-negotiation for speed (10/100/1000Mbps)
Auto MDI/MDIX (no crossover cables needed)
Full/half-duplex mode support
Supports SFP/SC/FC/ST connectors (single/multi-mode)
Hot-swappable SFP modules
LNK-IMC208GP Industrial 8-Port Ethernet Switch Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
2.75M bits |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
4K MAC Addresses |
|
Interface |
|
|
Connector: |
8 x RJ45 |
|
Optical Port: |
2 x 100/1000Base-FX (SFP, SC, FC, ST Optional) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
253W Max. (PoE in use) |
|
5W Max. (PoE not in use) |
|
|
Standard: |
IEEE802.3af/at |
|
PoE: |
|
|
Port: |
RJ45 Port 1 ~ Port 8 |
|
Max. Power per Port: |
30W Max per port |
|
Power Pin Assignment |
1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
PoE: |
Per Port Status |
|
Ethernet(Per Port): |
Link/Activity |
|
Fiber: |
FX1, FX2 |
|
Dimensions (WxDxH): |
150 x 115 x 50 mm |
|
Weight: |
0.6Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
LNK-IMC208GP Industrial 8-Port Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-IMC208GP |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m |
|
LNK-IMC208GP-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
|
LNK-IMC208GPS-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM |
|
LNK-IMC208GPF-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM |
|
LNK-IMC208GP-SFP |
Industrial 8-port 10/100/1000BASE-T (8-port PoE+) + 2-port 100/1000BASE SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
LNK-IMC408G Industrial 8-Port Ethernet Switch Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation, remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure by technicians and man-made damage caused by non-natural disasters, the purchaser can directly go to the purchasing point to replace the same type of products.Or a product of comparable performance. If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
